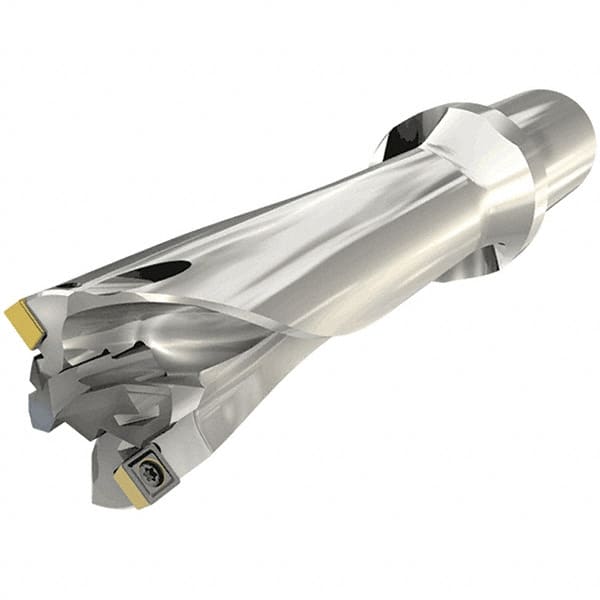

Iscar - 17.5 to 31mm Diam, 5xD, 155mm Max Depth, 32mm Shank Diam, 253.6mm OAL, Replaceable Tip Drill - ICP, SOGX-W Insert, MNC Toolholder, Series Combicham
Item #: 30709513
Brand: Iscar
Model #: 3202866
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | CombiCham |
| Minimum Drill Diameter (mm) | 17.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.6890 |
| Maximum Drill Diameter (mm) | 31.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.2205 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 6.1024 |
| Maximum Drill Depth (mm) | 155.00 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Style | ICP; SOGX-W |
| Toolholder Style | MNC |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 3.35 |
| Tip Length (Decimal Inch) | 0.1319 |
| Body Length (mm) | 193.60 |
| Body Length (Decimal Inch) | 7.6220 |
| Overall Length (mm) | 253.60 |
| Overall Length (Decimal Inch) | 9.9842 |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
