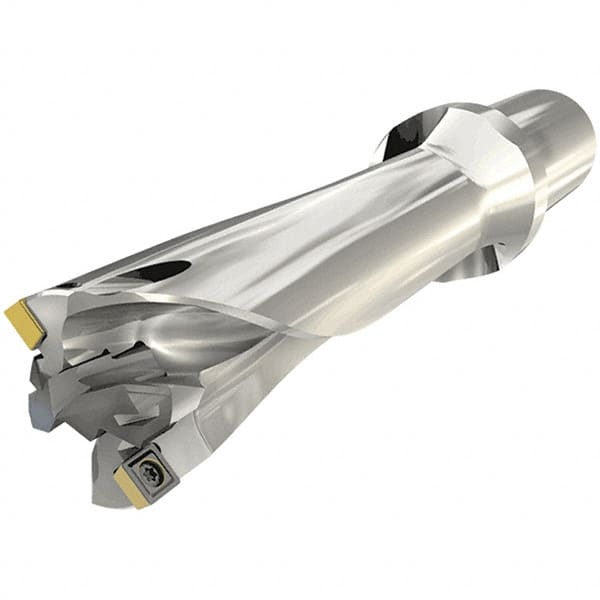

Iscar - 25.9 to 49mm Diam, 5xD, 245mm Max Depth, 40mm Shank Diam, 366mm OAL, Replaceable Tip Drill - ICP, SOGT-W Insert, MNC Toolholder, Series Combicham
Item #: 30709521
Brand: Iscar
Model #: 3202884
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | CombiCham |
| Minimum Drill Diameter (mm) | 25.90 |
| Minimum Drill Diameter (Decimal Inch) | 1.0197 |
| Maximum Drill Diameter (mm) | 49.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.9291 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 9.6457 |
| Maximum Drill Depth (mm) | 245.00 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Insert Style | ICP; SOGT-W |
| Toolholder Style | MNC |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 5.00 |
| Tip Length (Decimal Inch) | 0.1969 |
| Body Length (mm) | 293.00 |
| Body Length (Decimal Inch) | 11.5354 |
| Overall Length (mm) | 366.00 |
| Overall Length (Decimal Inch) | 14.4094 |
| Shank Length (mm) | 68.00 |
| Shank Length (Decimal Inch) | 2.6772 |
