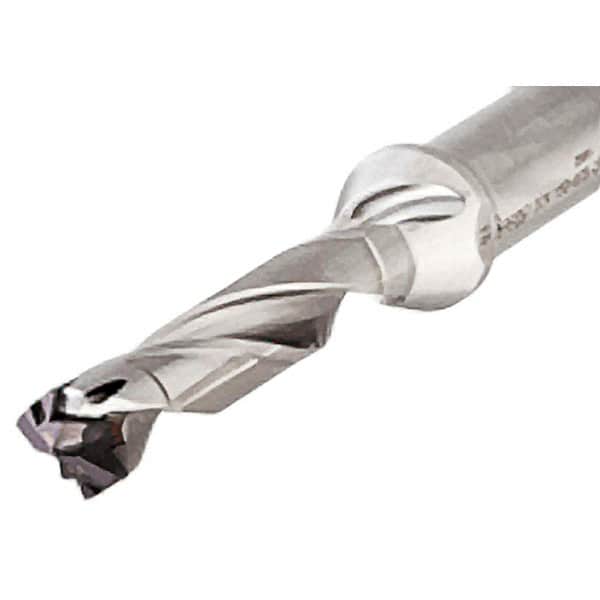

Iscar - 6mm to 1/4" Diam, 5xD, 30mm Max Depth, 12mm Shank Diam, 3-1/2" OAL, Replaceable-Tip Drill - ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 6 Seat Size, 30709547 Toolholder, Series SumoCham
Item #: 30709547
Brand: Iscar
Model #: 3202890
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 6.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.2362 |
| Maximum Drill Diameter (mm) | 6.40 |
| Maximum Drill Diameter (Decimal Inch) | 0.2520 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 1.1811 |
| Maximum Drill Depth (mm) | 30.00 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Style | ICK; ICK-2M; ICM; ICP; iCP-2M |
| Insert Seat Size | 6 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (mm) | 44.00 |
| Body Length (Decimal Inch) | 1.7323 |
| Overall Length (mm) | 89.00 |
| Overall Length (Decimal Inch) | 3.5039 |
| Shank Length (mm) | 45.00 |
| Shank Length (Decimal Inch) | 1.7717 |
