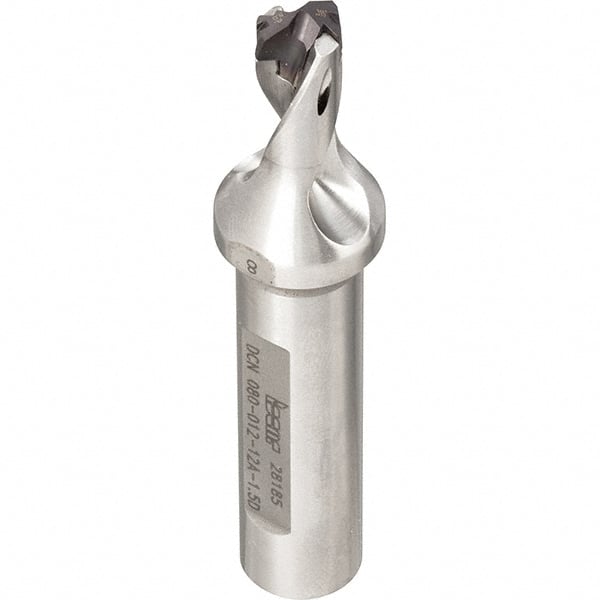

Iscar - 6.5mm to 6.9mm Diam, 1.5xD, 10mm Max Depth, 12mm Shank Diam, 69.1mm OAL, Replaceable-Tip Drill - ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 6.5 Seat Size, 30709638 Toolholder, Series SumoCham
Item #: 30709638
Brand: Iscar
Model #: 3203288
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 6.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.2559 |
| Maximum Drill Diameter (mm) | 6.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.2717 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 0.3937 |
| Maximum Drill Depth (mm) | 10.00 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Style | ICK; ICK-2M; ICM; ICP; iCP-2M |
| Insert Seat Size | 6.5 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 24.10 |
| Body Length (Decimal Inch) | 0.9488 |
| Overall Length (mm) | 69.10 |
| Overall Length (Decimal Inch) | 2.7205 |
| Shank Length (mm) | 45.00 |
| Shank Length (Decimal Inch) | 1.7717 |
