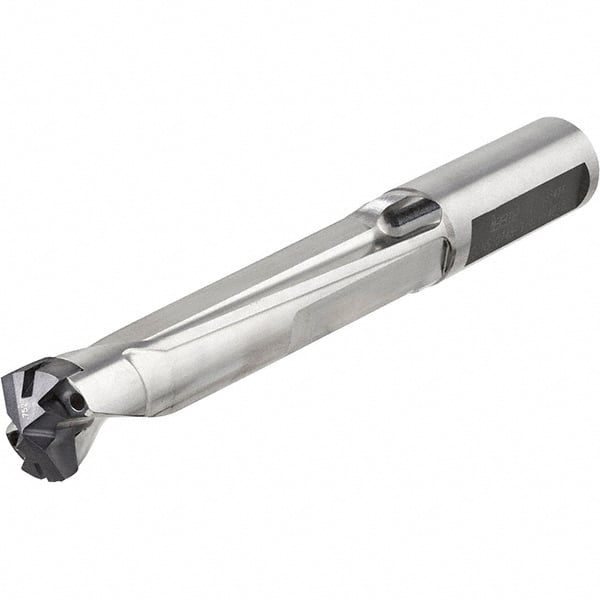

Iscar - 10.5mm to 10.9mm Diam, 5xD, 52.58mm Max Depth, 11mm Shank Diam, 108.71mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 10 Seat Size, 30709695 Toolholder, Series UniSumoCham
Item #: 30709695
Brand: Iscar
Model #: 3203058
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | UniSumoCham |
| Minimum Drill Diameter (mm) | 10.49 |
| Minimum Drill Diameter (Decimal Inch) | 0.4130 |
| Maximum Drill Diameter (mm) | 10.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.4290 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.0700 |
| Maximum Drill Depth (mm) | 52.58 |
| Shank Diameter (mm) | 11.00 |
| Shank Diameter (Decimal Inch) | 0.4330 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Insert Seat Size | 10 |
| Toolholder Style | DCNS |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 67.82 |
| Body Length (Decimal Inch) | 2.6700 |
| Overall Length (mm) | 108.71 |
| Overall Length (Decimal Inch) | 4.2800 |
| Shank Length (mm) | 40.89 |
| Shank Length (Decimal Inch) | 1.6100 |
