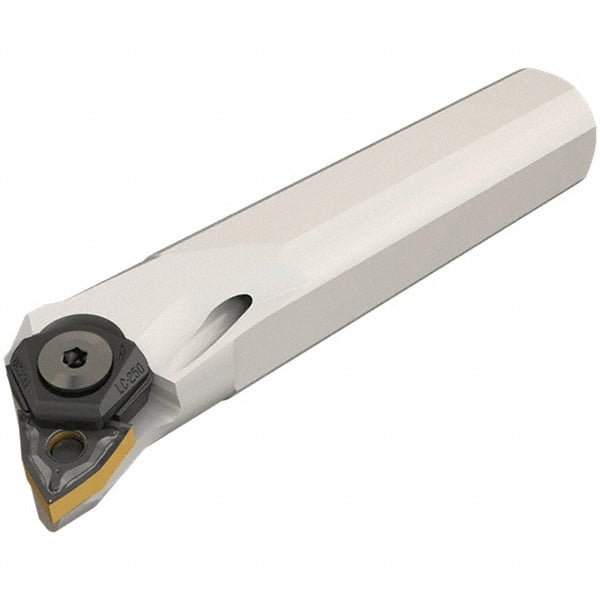

Iscar - 36mm Min Bore Diam, 350mm OAL, 32mm Shank Diam, S-MWLN-W Indexable Boring Bar - 40mm Max Bore Depth, WNM.. Insert, Pin & Clamp Holding Method
Item #: 30709836
Brand: Iscar
Model #: 3601313
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-MWLN-W |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 36.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.4173 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 40.00 |
| Maximum Bore Depth (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 350.00 |
| Overall Length (Decimal Inch) | 13.7795 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Compatibility | WNM.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Rake | Negative (Radial) |
| Lead Angle | 95 |
| Center to Cutting Edge (mm) | 19.00 |
| Center to Cutting Edge (Decimal Inch) | 0.7480 |
| Rake Angle | -10 (Radial), -6 (Axial) |
| Complete Insert Compatibility | WNMA 06T304; WNMA 06T308; WNMA 06T312; WNMG 06T301-NF; WNMG 06T302-NF; WNMG 06T304-GN; WNMG 06T304-NF; WNMG 06T304-PP; WNMG 06T304-TF; WNMG 06T308-GN; WNMG 06T308-NF; WNMG 06T308-PP; WNMG 06T308-TF; WNMG 06T312-GN; WNMG 06T312-TF |
| Toolholder Material | Steel |
