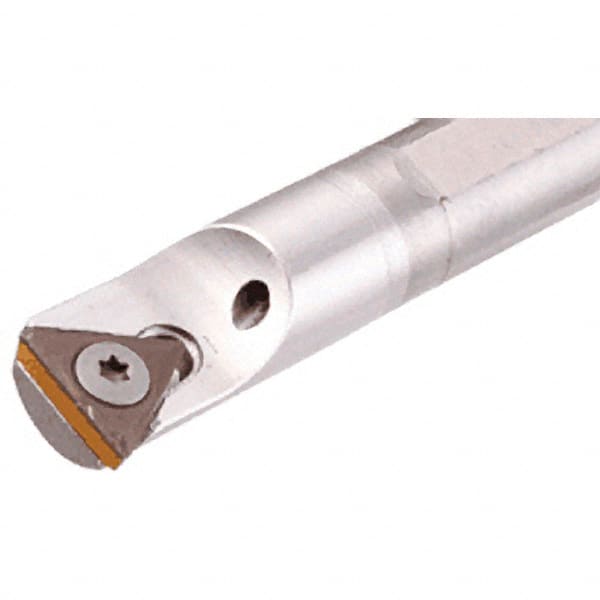

Iscar - 13mm Min Bore Diam, 180mm OAL, 12mm Shank Diam, A-STFP Indexable Boring Bar - TP.. 1102.. Insert, Screw Holding Method
Item #: 30709927
Brand: Iscar
Model #: 3601803
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-STFP |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 13.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.5118 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 180.00 |
| Overall Length (Decimal Inch) | 7.0866 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Compatibility | TP.. 1102.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 91 |
| Maximum Bore Diameter (mm) | 14.00 |
| Maximum Bore Diameter (Decimal Inch) | 0.5512 |
| Center to Cutting Edge (mm) | 7.00 |
| Center to Cutting Edge (Decimal Inch) | 0.2756 |
| Rake Angle | 0 (Radial), 4 (Axial) |
| Complete Insert Compatibility | TPGB 110204; TPGB 110204-XL; TPGH 110204-L; TPGH 110204-XL; TPGH 110208-L; TPMT 110202; TPMT 110204; TPMT 110208 |
| Toolholder Material | Steel |
