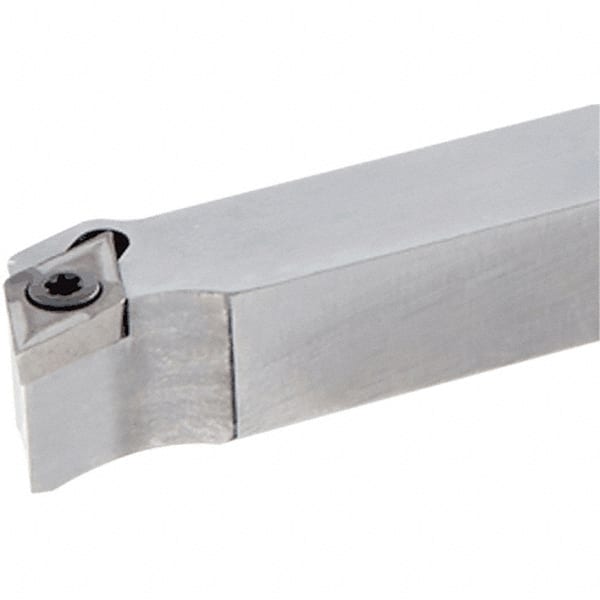

Iscar - PCLC, Right Hand Cut, 95° Lead Angle, 12mm Shank Height x 12mm Shank Width, Neutral Rake Indexable Turning Toolholder - 100mm OAL, CC.. Insert Compatibility, Series Isoturn
Item #: 30710297
Brand: Iscar
Model #: 3603111
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | PCLC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | Isoturn |
| Lead Angle | 95 |
| Shank Width (mm) | 12.00 |
| Shank Width (Decimal Inch) | 0.4724 |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Insert Compatibility | CC.. |
| Multi-Use Tool | No |
| Insert Holding Method | Lever Lock |
| Back of Bar to Cutting Edge (mm) | 14.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5512 |
| Head Length (mm) | 22.30 |
| Head Length (Decimal Inch) | 0.8780 |
