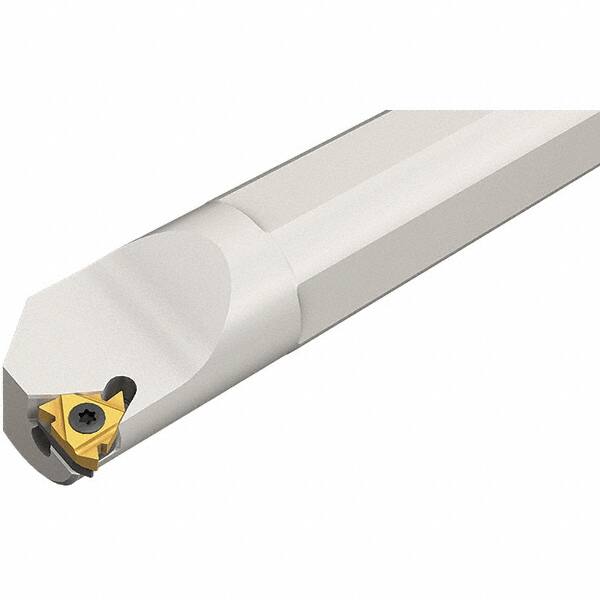

Iscar - Internal Thread, Right Hand Cut, 16mm Shank Width x 16mm Shank Height Indexable Threading Toolholder - 200mm OAL, Various Insert Compatibility, SI Toolholder, Series IscarThread
Item #: 30711261
Brand: Iscar
Model #: 3890345
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Overall Length (mm) | 200.00 |
| Insert Compatibility | 16IR..; GTGA 16IR..; GTMA 16IR.. |
| Series | IscarThread |
| Toolholder Style | SI |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Center to Cutting Edge (mm) | 11.70 |
| Center to Cutting Edge (Decimal Inch) | 0.4606 |
| Neck Diameter (Decimal Inch) | 0.6299 |
| Minimum Bore Diameter (Decimal Inch) | 0.7480 |
| Insert Inscribed Circle (mm) | 9.52 |
| Insert Inscribed Circle (Decimal Inch) | 0.3748 |
| Toolholder Material | Carbide |
