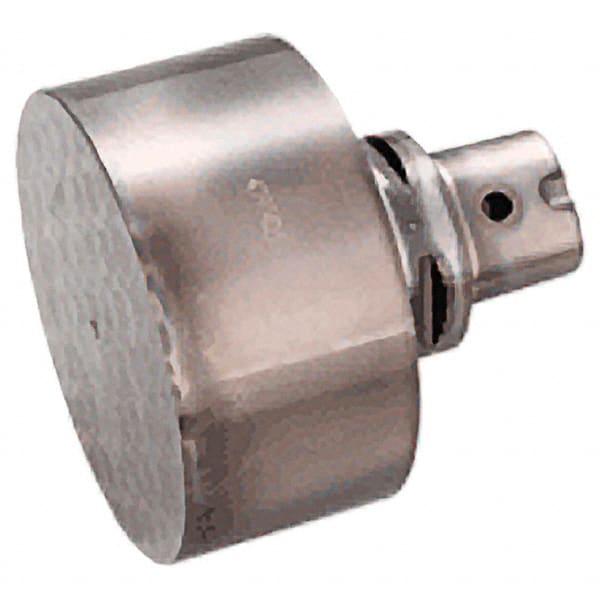

Iscar - Modular Connection, 110mm Diameter, Tool Holder Blank - 69mm Projection Flange to Nose End, 90mm Projection Gage Line to Nose End
Item #: 30711352
Brand: Iscar
Model #: 4500207
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single tap chucks to accept various tap shank diameters without changing machine tool holding set-ups.
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Blank Diameter (mm) | 110.00 |
| Blank Diameter (Decimal Inch) | 4.3307 |
| Projection Gage Line to Nose End (Decimal Inch) | 3.5433 |
| Projection Gage Line to Nose End (mm) | 90.00 |
| Projection Flange to Nose End (mm) | 69.00 |
| Projection Flange to Nose End (Decimal Inch) | 2.7165 |
