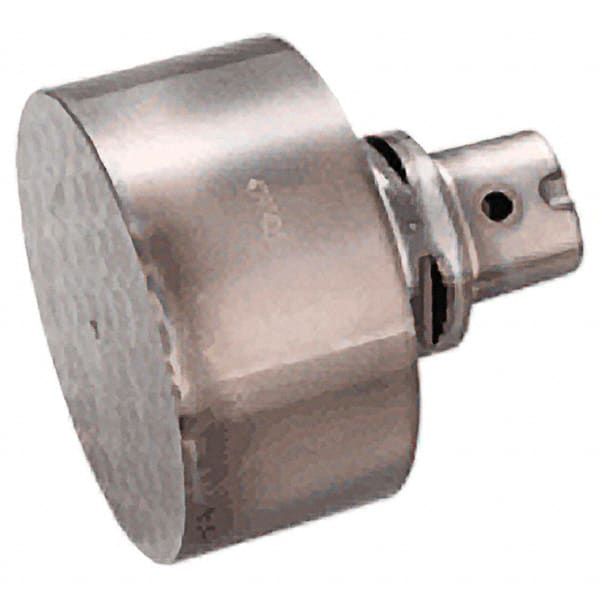

Iscar - Modular Connection, 75mm Diameter, Tool Holder Blank - 154mm Projection Flange to Nose End, 175mm Projection Gage Line to Nose End
Item #: 30711378
Brand: Iscar
Model #: 4500205
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single tap chucks to accept various tap shank diameters without changing machine tool holding set-ups.
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Blank Diameter (mm) | 75.00 |
| Blank Diameter (Decimal Inch) | 2.9528 |
| Projection Gage Line to Nose End (Decimal Inch) | 6.8898 |
| Projection Gage Line to Nose End (mm) | 175.00 |
| Projection Flange to Nose End (mm) | 154.00 |
| Projection Flange to Nose End (Decimal Inch) | 6.0630 |
