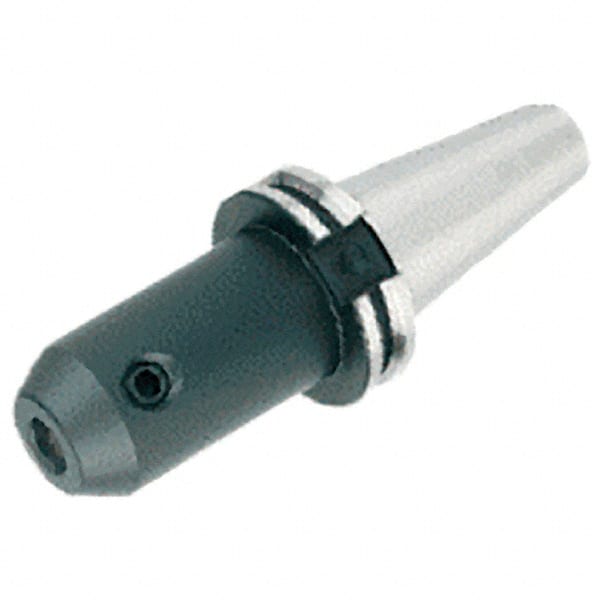

Iscar - CAT40 Taper Shank 7/8" Hole End Mill Holder/Adapter - 52mm Nose Diam, 4" Projection, Through-Spindle & DIN Flange Coolant
Item #: 30712012
Brand: Iscar
Model #: 4501463
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Hole Diameter (Inch) | 7/8 |
| Nose Diameter (mm) | 52.00 |
| Projection (Decimal Inch) | 4.0000 |
| Through Coolant | Yes |
| Clamping Depth (Decimal Inch) | 3.2500 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle & DIN Flange |
| Retention Knob Thread Size | 5/8-11 |
