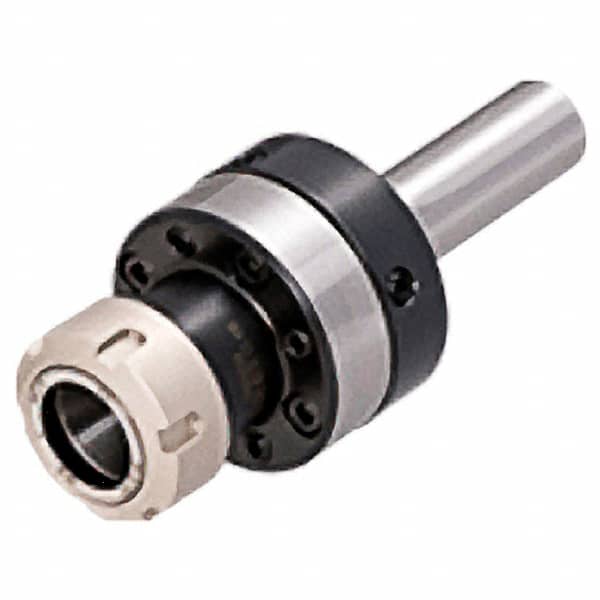

Iscar - 0.08" to 0.789" Capacity, 94.5mm Projection, Straight Shank, ER32 Collet Chuck - 6.87" OAL, 1-1/4" Shank Diam
Item #: 30716849
Brand: Iscar
Model #: 4505977
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER32 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1-1/4 |
| Projection (mm) | 94.50 |
| Projection (Decimal Inch) | 3.7205 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0800 |
| Maximum Collet Capacity (Decimal Inch) | 0.7890 |
| Overall Length (Decimal Inch) | 6.8700 |
| Shank Length (Decimal Inch) | 3.1500 |
| Nose Diameter (Decimal Inch) | 1.9690 |
| PSC Code | 5136 |
| Coolant Type | Through-Spindle |
