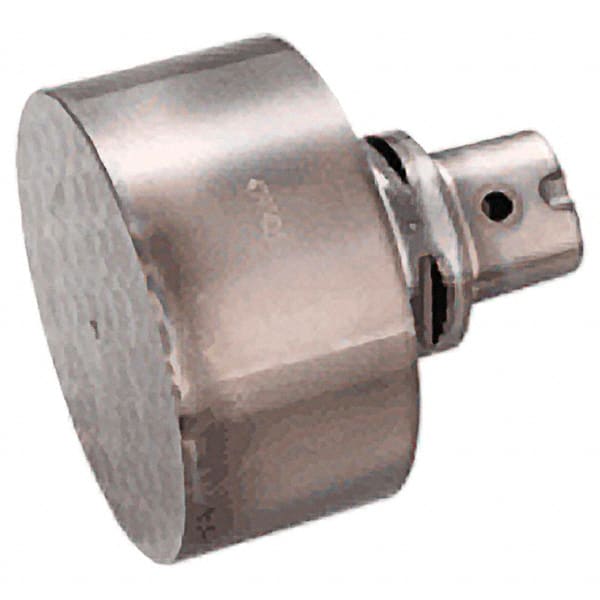

Iscar - Modular Connection, 120mm Diameter, Tool Holder Blank - 129mm Projection Flange to Nose End, 160mm Projection Gage Line to Nose End
Item #: 30717946
Brand: Iscar
Model #: 4509632
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single tap chucks to accept various tap shank diameters without changing machine tool holding set-ups.
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Blank Diameter (mm) | 120.00 |
| Blank Diameter (Decimal Inch) | 4.7244 |
| Projection Gage Line to Nose End (Decimal Inch) | 6.2992 |
| Projection Gage Line to Nose End (mm) | 160.00 |
| Projection Flange to Nose End (mm) | 129.00 |
| Projection Flange to Nose End (Decimal Inch) | 5.0787 |
