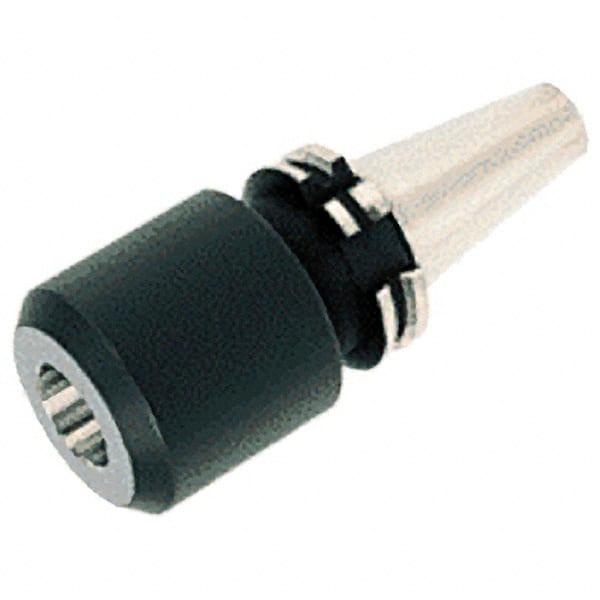

Iscar - DIN69871-50 Taper, 63/64" Inside Hole Diam, 3.1496" Projection, Straight Shank with Flat Adapter - 2.5591" Body Diam, Taper Shank, Through Coolant
Item #: 30719892
Brand: Iscar
Model #: 4535007
Exact Tooling IR#: 04
Features and Benefits
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Type | Straight Shank w/ Flat Adapter |
| Taper Size | DIN69871-50 |
| Inside Hole Diameter (mm) | 25.00 |
| Inside Hole Diameter (Decimal Inch) | 0.9843 |
| Projection (mm) | 80 |
| Body Diameter (mm) | 65.00 |
| Body Diameter (Decimal Inch) | 2.5591 |
| Projection (Decimal Inch) | 3.1496 |
| Through Coolant | Yes |
