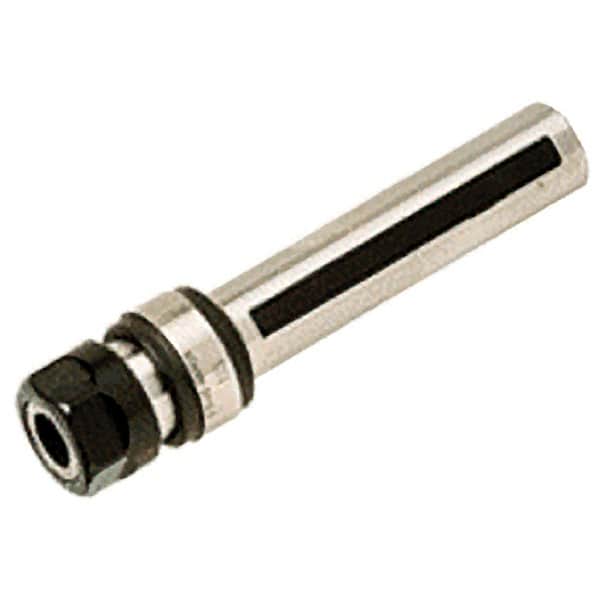

Iscar - 25mm Straight Shank Diam Tapping Chuck/Holder - M6 to M20 Tap Capacity, 77.2mm Projection
Item #: 30720577
Brand: Iscar
Model #: 4545022
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Minimum Tap Capacity (mm) | M6 |
| Maximum Tap Capacity (mm) | M20 |
| Projection (Decimal Inch) | 3.0394 |
| Projection (mm) | 77.20 |
| Quick Change | No |
| Minimum Collet Capacity (mm) | 1.00 |
| Minimum Collet Capacity (Decimal Inch) | 0.0394 |
| Maximum Collet Capacity (Decimal Inch) | 0.6299 |
| Maximum Collet Capacity (mm) | 16.00 |
| Collet System | ER Tap |
| Collet Series | ER 32 |
| Nose Diameter (mm) | 50.00 |
| Nose Diameter (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 157.20 |
| Overall Length (Decimal Inch) | 6.1890 |
| Through Coolant | No |
