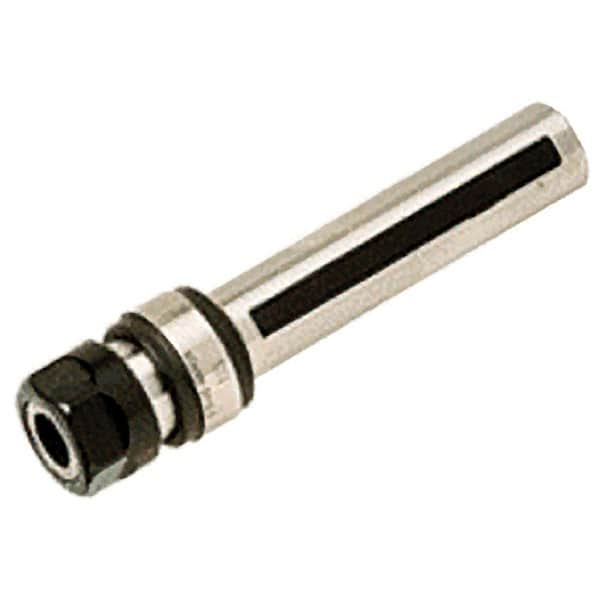

Iscar - 32mm Straight Shank Diam Tapping Chuck/Holder - M6 to M27 Tap Capacity, 95.2mm Projection
Item #: 30720585
Brand: Iscar
Model #: 4545023
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Minimum Tap Capacity (mm) | M6 |
| Maximum Tap Capacity (mm) | M27 |
| Projection (Decimal Inch) | 3.7480 |
| Projection (mm) | 95.20 |
| Quick Change | No |
| Minimum Collet Capacity (mm) | 2.00 |
| Minimum Collet Capacity (Decimal Inch) | 0.0787 |
| Maximum Collet Capacity (Decimal Inch) | 0.7874 |
| Maximum Collet Capacity (mm) | 20.00 |
| Collet System | ER Tap |
| Collet Series | ER 40 |
| Nose Diameter (mm) | 63.00 |
| Nose Diameter (Decimal Inch) | 2.4803 |
| Overall Length (mm) | 175.20 |
| Overall Length (Decimal Inch) | 6.8976 |
| Through Coolant | No |
