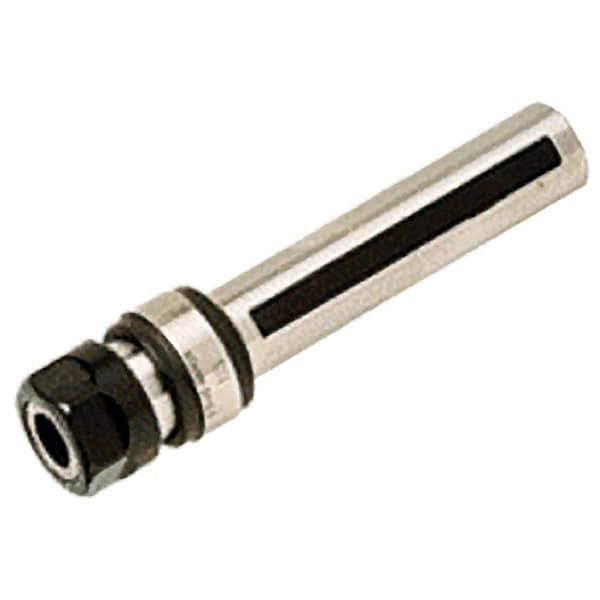

Iscar - 16mm Straight Shank Diam Tapping Chuck/Holder - M2 to M7 Tap Capacity
Item #: 30720593
Brand: Iscar
Model #: 4545024
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Minimum Tap Capacity (mm) | M2 |
| Maximum Tap Capacity (mm) | M7 |
| Quick Change | No |
| Minimum Collet Capacity (mm) | 0.50 |
| Minimum Collet Capacity (Decimal Inch) | 0.0197 |
| Maximum Collet Capacity (Decimal Inch) | 0.2756 |
| Maximum Collet Capacity (mm) | 7.00 |
| Collet System | ER Tap |
| Collet Series | ER 11 |
| Nose Diameter (mm) | 16.00 |
| Nose Diameter (Decimal Inch) | 0.6299 |
| Through Coolant | No |
