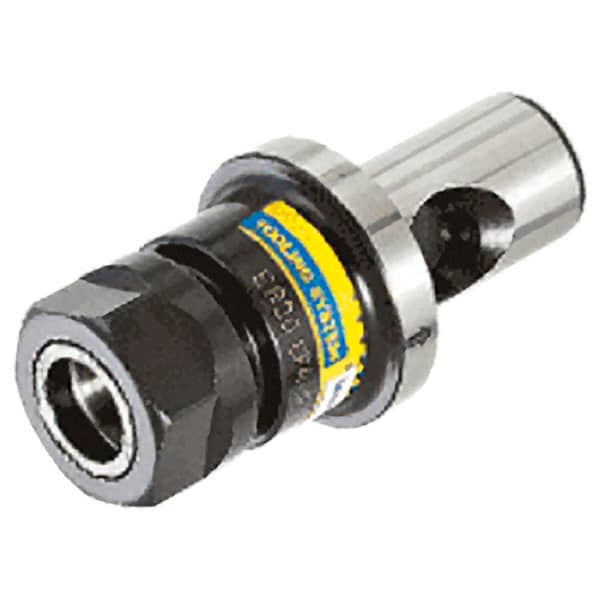

Iscar - 1mm to 13mm Capacity, 55mm Projection, Modular Connection, ER20 Collet Chuck - 97mm OAL
Item #: 30720676
Brand: Iscar
Model #: 4548013
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER20 |
| Shank Type | Modular Connection |
| Modular Connection Size | CF4 |
| Projection (mm) | 55.00 |
| Projection (Decimal Inch) | 2.1654 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0394 |
| Minimum Collet Capacity (mm) | 1.00 |
| Maximum Collet Capacity (mm) | 13.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.5118 |
| Overall Length (mm) | 97.00 |
| Overall Length (Decimal Inch) | 3.8189 |
| Nose Diameter (mm) | 34.00 |
| Nose Diameter (Decimal Inch) | 1.3386 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0030 |
| Coolant Type | Through-Spindle |
