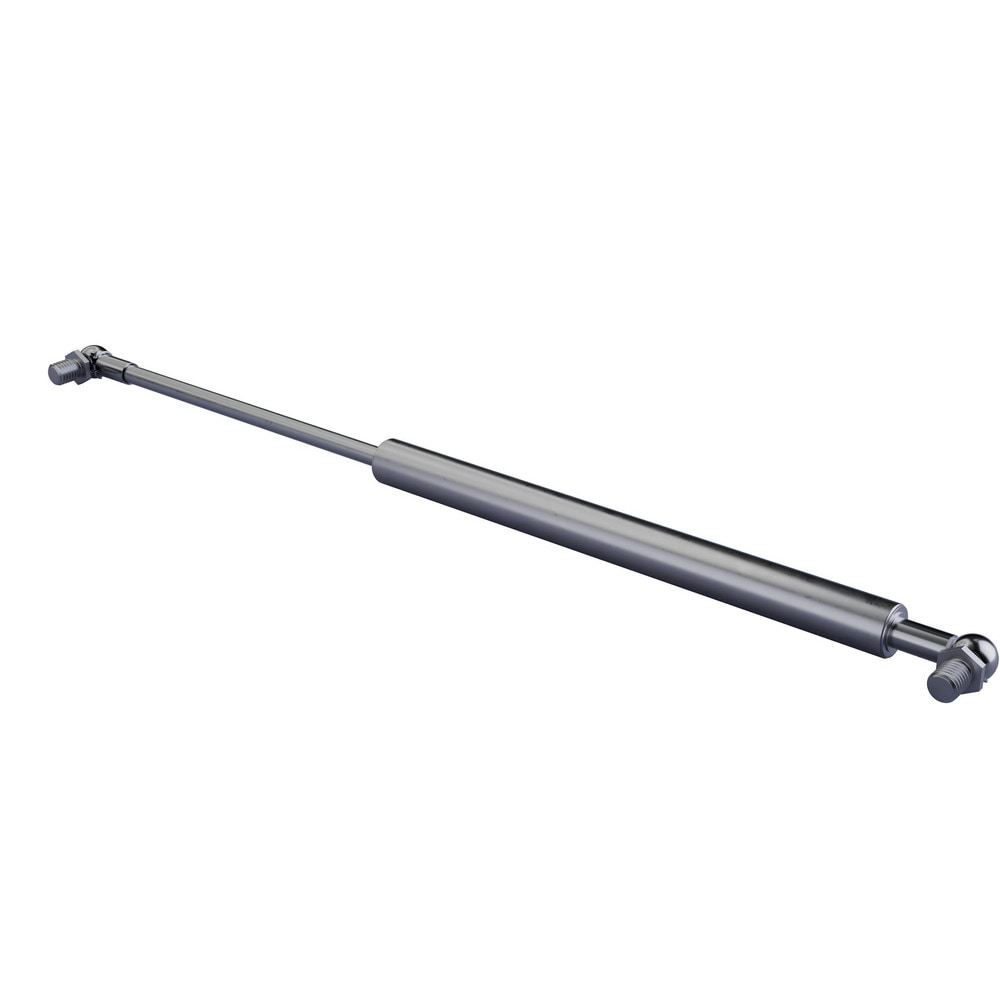

Extended Life Gas Spring: 0.3900" Rod Dia, 0.8700" Tube Dia, 90.00 lb Capacity
Item #: 02379345
Brand: Industrial Gas Springs
Model #: 15S002386JJ0400
Product Specifications
| Fitting Type | Ball Joint |
| Type | Extended Life Gas Spring |
| Material | Stainless Steel |
| Rod Diameter (Decimal Inch) | 0.3900 |
| Tube Diameter (Decimal Inch) | 0.8700 |
| End Fitting Connection | Threaded End |
| Extended Length (Decimal Inch) | 29.0900 |
| Compressed Length (Decimal Inch) | 17.08 |
| Extension Force | 117 |
| Stroke Length (Decimal Inch) | 12.0100 |
| Thread Size (mm) | M10 x 1.5 |
| Force Mechanism | Gas |
| Working Direction | Extension |
| Capacity (Lb.) | 90.00 |
| Special Item Information | Stainless Steel Ball Joint |
| Finish Coating | Uncoated |
| Spring Rate | 2.2000 |
| UNSPSC Code | 31162800 |
