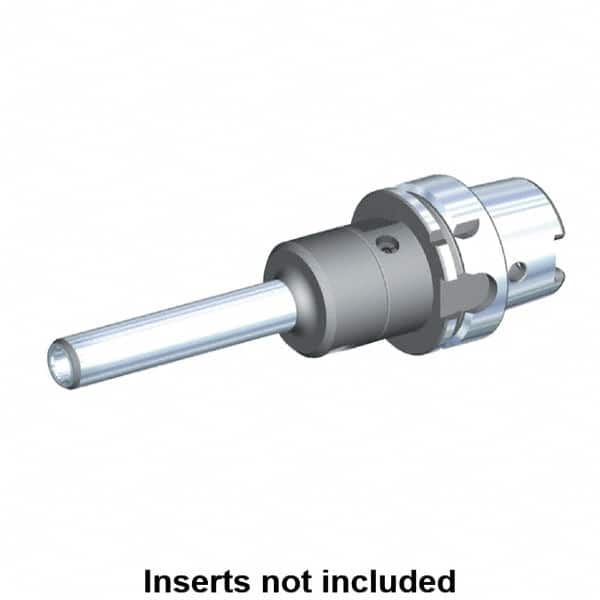

Kennametal - HSK100A Taper Shank, 14mm Hole Diam, Hydraulic Tool Holder/Chuck - 21.5mm Nose Diam, 200mm Projection, 36mm Clamp Depth, 15,000 RPM, Through Coolant
Item #: 30733083
Brand: Kennametal
Model #: 3061090
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK100A |
| Hole Diameter (Decimal Inch) | 0.5512 |
| Hole Diameter (mm) | 14.00 |
| Nose Diameter (Decimal Inch) | 0.8465 |
| Nose Diameter (mm) | 21.50 |
| Projection (Decimal Inch) | 7.8740 |
| Projection (mm) | 200.00 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 36.00 |
| Clamping Depth (Decimal Inch) | 1.4173 |
| Balanced to (RPM) | 15000 |
