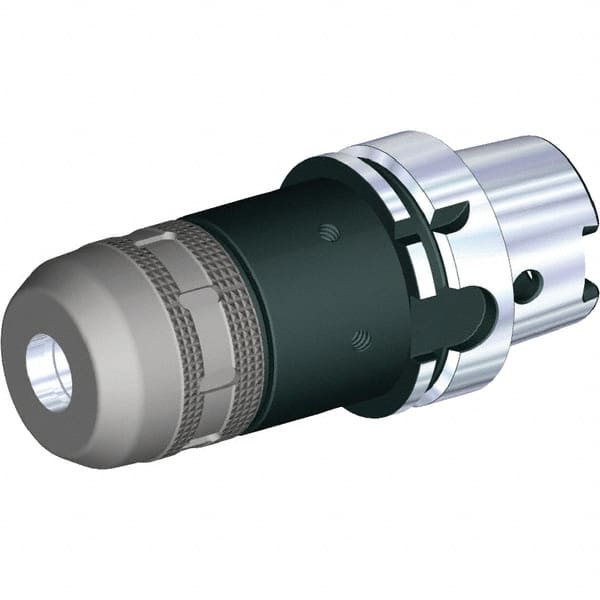

Kennametal - HSK63A Taper Shank, 3/4" Hole Diam x 2.09" Nose Diam Milling Chuck - 4.33" Projection, 0.0002" TIR, Through-Spindle Coolant, Balanced to 20,000 RPM
Item #: 30733349
Brand: Kennametal
Model #: 3100544
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Taper Size | HSK63A |
| Shank Type | Taper Shank |
| Hole Diameter (Inch) | 3/4 |
| Hole Diameter (Decimal Inch) | 0.7500 |
| Nose Diameter (Decimal Inch) | 2.0900 |
| Projection (Decimal Inch) | 4.3300 |
| Through Coolant | Yes |
| Clamping Depth (Decimal Inch) | 2.2000 |
| Balanced to (RPM) | 20000 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
