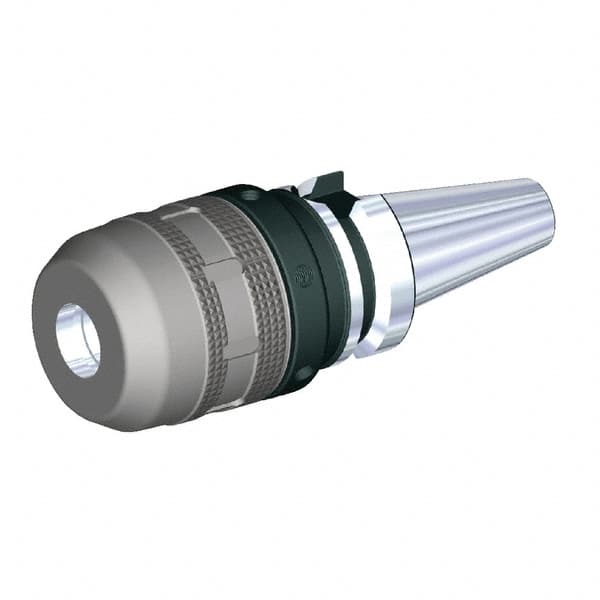

Kennametal - BT30 Taper Shank, 20mm Hole Diam x 2.0866" Nose Diam Milling Chuck - 3.3465" Projection, 0.0002" TIR, Through-Spindle Coolant, Balanced to 20,000 RPM
Item #: 30733679
Brand: Kennametal
Model #: 3578486
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Taper Size | BT30 |
| Shank Type | Taper Shank |
| Hole Diameter (mm) | 20.00 |
| Hole Diameter (Decimal Inch) | 0.7874 |
| Nose Diameter (mm) | 53.00 |
| Nose Diameter (Decimal Inch) | 2.0866 |
| Projection (mm) | 85.00 |
| Projection (Decimal Inch) | 3.3465 |
| Through Coolant | Yes |
| Clamping Depth (Decimal Inch) | 2.1654 |
| Balanced to (RPM) | 20000 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
