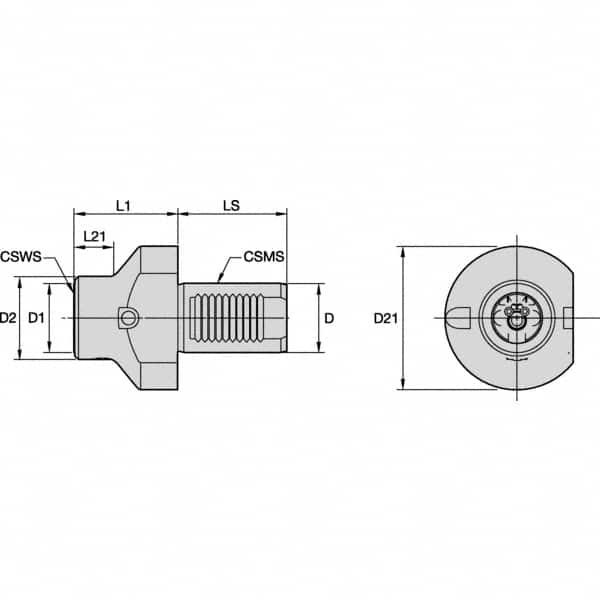

Kennametal - Left Hand Cut, KM50 Modular Connection, Adapter/Mount Lathe Modular Clamping Unit - 40mm Square Shank Diam, Through Coolant, Series RCML-VDI Axial Large Body Diameter
Item #: 30742522
Brand: Kennametal
Model #: 2032952
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Clamping Unit Type | Adapter/Mount |
| Series Code | RCML-VDI Axial Large Body Diameter |
| Connection Size | KM50 |
| Cutting Direction | Left Hand |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Through Coolant | Yes |
| Head Height (mm) | 83.00 |
| Head Height (Decimal Inch) | 3.2677 |
| Head Length (Decimal Inch) | 4.7244 |
| Head Length (mm) | 120.00 |
| Shank Length (mm) | 63.00 |
| Shank Length (Decimal Inch) | 2.4803 |
