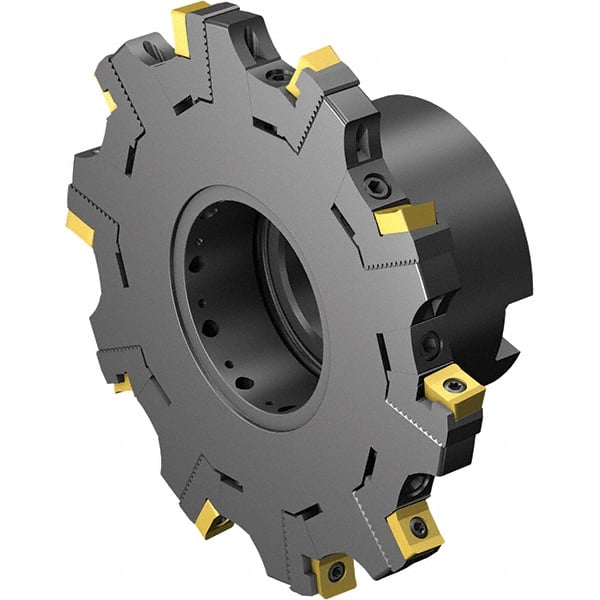

Sandvik Coromant - Arbor Connection, 0.2362" Cutting Width, 1.6142" Depth of Cut, 160mm Cutter Diam, 1.5748" Hole Diam, Indexable Slotting Cutter - 1.5748" Shank Diam, Right Hand Cutting Direction
Item #: 30850093
Brand: Sandvik Coromant
Model #: 7295402
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor |
| Cutting Width (Decimal Inch) | 0.23622 |
| Cutting Width (mm) | 6 |
| Maximum Depth of Cut (Decimal Inch) | 1.61417 |
| Maximum Depth of Cut (mm) | 41 |
| Cutter Diameter (mm) | 160.00 |
| Cutter Diameter (Decimal Inch) | 6.2992 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Maximum RPM | 13200 |
| Minimum Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Cutting Width (Decimal Inch) | 0.314961 |
| Maximum Cutting Width (mm) | 8 |
| Hub Diameter (mm) | 73.00 |
| Hub Diameter (Decimal Inch) | 2.8740 |
| Through Coolant | Yes |
| Manufacturers Catalog Number | R331.32C-160Q40CM |
