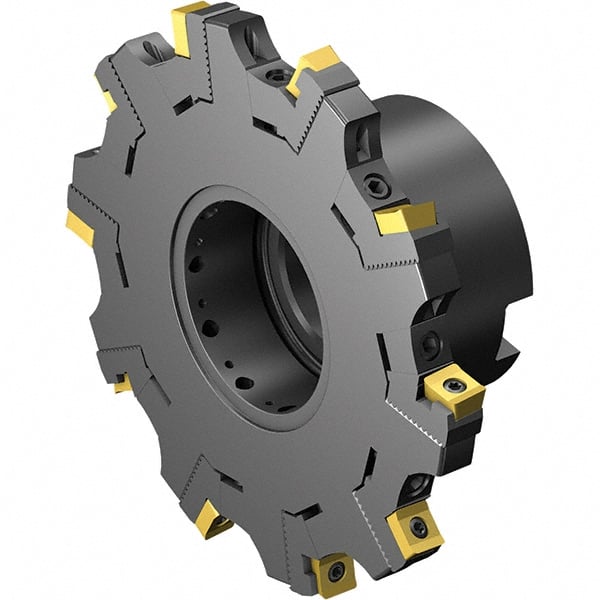

Sandvik Coromant - Arbor Connection, 0.2362" Cutting Width, 0.7874" Depth of Cut, 80mm Cutter Diam, 1-1/16" Hole Diam, Indexable Slotting Cutter - 1-1/16" Shank Diam, Right Hand Cutting Direction
Item #: 30850127
Brand: Sandvik Coromant
Model #: 7295399
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor |
| Cutting Width (Decimal Inch) | 0.23622 |
| Cutting Width (mm) | 6 |
| Maximum Depth of Cut (Decimal Inch) | 0.787402 |
| Maximum Depth of Cut (mm) | 20 |
| Cutter Diameter (mm) | 80.00 |
| Cutter Diameter (Decimal Inch) | 3.1496 |
| Hole Diameter (mm) | 27.00 |
| Hole Diameter (Decimal Inch) | 1.0630 |
| Shank Diameter (mm) | 27.00 |
| Shank Diameter (Decimal Inch) | 1.06299 |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Right Hand |
| Maximum RPM | 19300 |
| Minimum Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Cutting Width (Decimal Inch) | 0.314961 |
| Maximum Cutting Width (mm) | 8 |
| Hub Diameter (mm) | 51.00 |
| Hub Diameter (Decimal Inch) | 2.0079 |
| Through Coolant | Yes |
| Manufacturers Catalog Number | R331.32C-080Q27CM |
