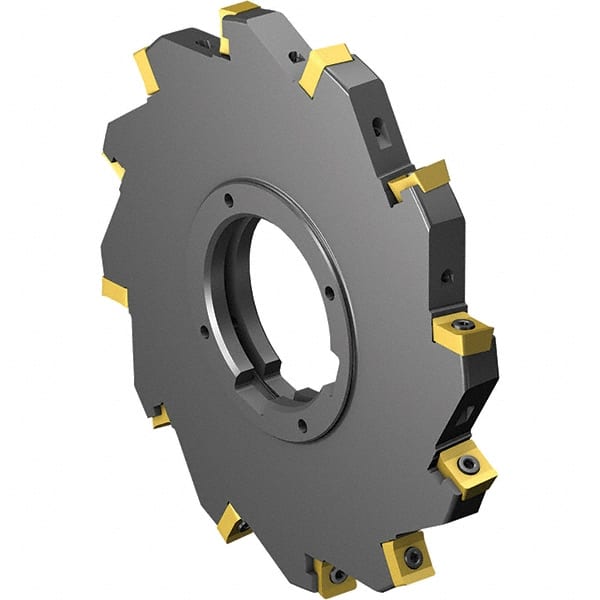

Sandvik Coromant - 0.315" Cutting Width, 1" Depth of Cut, 1.2598" Hole Diam, 10 Tooth Indexable Slotting Cutter - Neutral Cutting Direction
Item #: 30850275
Brand: Sandvik Coromant
Model #: 7295384
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Width (Decimal Inch) | 0.314961 |
| Cutting Width (mm) | 8 |
| Maximum Depth of Cut (Decimal Inch) | 1.00394 |
| Maximum Depth of Cut (mm) | 25.5 |
| Hole Diameter (mm) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Number of Teeth | 10 |
| Number of Cutter Inserts | 10 |
| Cutting Direction | Neutral |
| Maximum RPM | 13000 |
| Hub Diameter (mm) | 47.00 |
| Hub Diameter (Decimal Inch) | 1.8504 |
| Through Coolant | Yes |
| Manufacturers Catalog Number | N331.35C-100S32DM080 |
