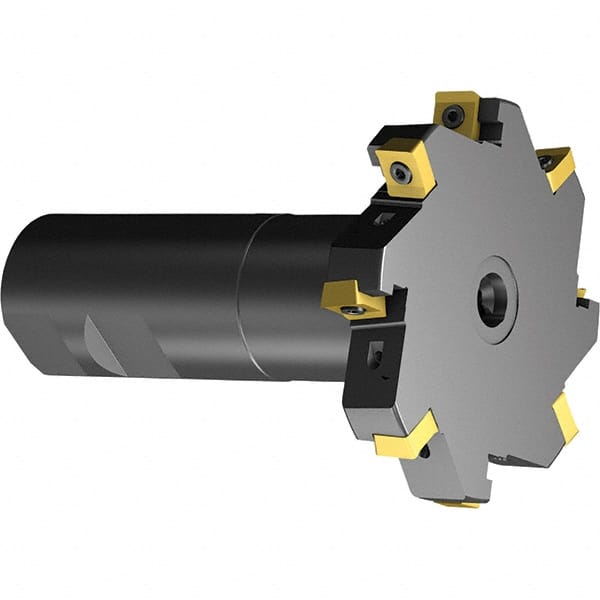

Sandvik Coromant - 3/8" Cutting Width, 0.583" Depth of Cut, 2" Cutter Diam, 1" Hole Diam, 6 Tooth Indexable Slotting Cutter - Right Hand Cutting Direction
Item #: 30850382
Brand: Sandvik Coromant
Model #: 7295454
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Width (Decimal Inch) | 0.375 |
| Cutting Width (mm) | 9.525 |
| Maximum Depth of Cut (Decimal Inch) | 0.582992 |
| Maximum Depth of Cut (mm) | 14.8082 |
| Cutter Diameter (Inch) | 2 |
| Hole Diameter (mm) | 25.40 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Number of Teeth | 6 |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Right Hand |
| Maximum RPM | 19500 |
| Through Coolant | Yes |
| Manufacturers Catalog Number | R331.35C-051M25EMA06 |
