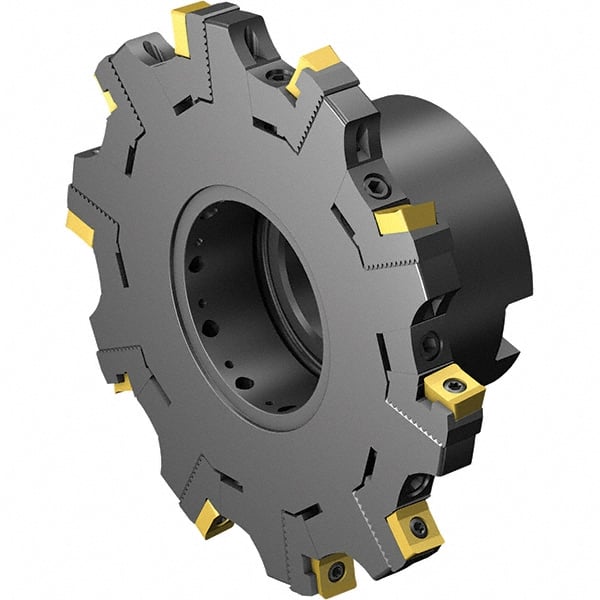

Sandvik Coromant - Arbor Connection, 1.6142" Depth of Cut, 160mm Cutter Diam, 1.5748" Hole Diam, Indexable Slotting Cutter - 1.5748" Shank Diam, Right Hand Cutting Direction
Item #: 30850671
Brand: Sandvik Coromant
Model #: 7295406
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor |
| Maximum Depth of Cut (Decimal Inch) | 1.61417 |
| Maximum Depth of Cut (mm) | 41 |
| Cutter Diameter (mm) | 160.00 |
| Cutter Diameter (Decimal Inch) | 6.2992 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Maximum RPM | 10200 |
| Minimum Cutting Width (Decimal Inch) | 0.3110 |
| Maximum Cutting Width (Decimal Inch) | 0.393701 |
| Maximum Cutting Width (mm) | 10 |
| Through Coolant | Yes |
| Manufacturers Catalog Number | R331.32C-160Q40DM |
