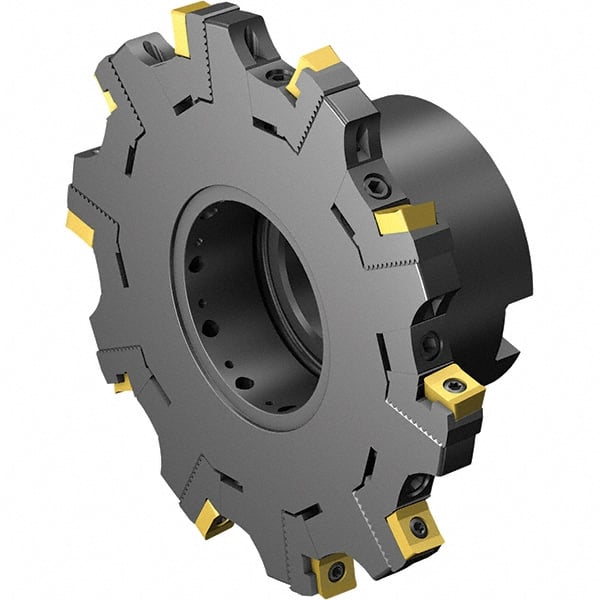

Sandvik Coromant - Arbor Connection, 0.315" Cutting Width, 1.1614" Depth of Cut, 125mm Cutter Diam, 1.2598" Hole Diam, Indexable Slotting Cutter - 1.2598" Shank Diam, Right Hand Cutting Direction
Item #: 30850689
Brand: Sandvik Coromant
Model #: 7295405
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor |
| Cutting Width (Decimal Inch) | 0.314961 |
| Cutting Width (mm) | 8 |
| Maximum Depth of Cut (Decimal Inch) | 1.16142 |
| Maximum Depth of Cut (mm) | 29.5 |
| Cutter Diameter (mm) | 125.00 |
| Cutter Diameter (Decimal Inch) | 4.9213 |
| Hole Diameter (mm) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.25984 |
| Number of Cutter Inserts | 10 |
| Cutting Direction | Right Hand |
| Maximum RPM | 11700 |
| Minimum Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Cutting Width (Decimal Inch) | 0.393701 |
| Maximum Cutting Width (mm) | 10 |
| Hub Diameter (mm) | 61.00 |
| Hub Diameter (Decimal Inch) | 2.4016 |
| Through Coolant | Yes |
| Manufacturers Catalog Number | R331.32C-125Q32DM |
