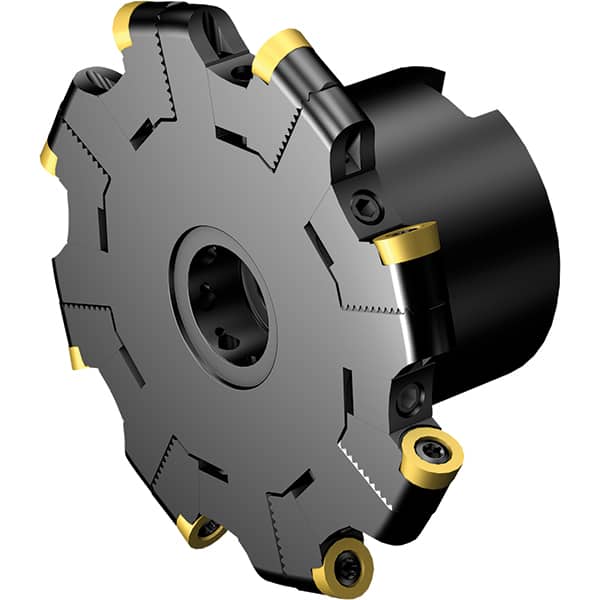

Sandvik Coromant - 0.6299" Cutting Width, 1.2" Depth of Cut, 1-1/4" Hole Diam, 8 Tooth Indexable Slotting Cutter - Right Hand Cutting Direction
Item #: 30850762
Brand: Sandvik Coromant
Model #: 7370531
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Width (Decimal Inch) | 0.629921 |
| Cutting Width (mm) | 16 |
| Maximum Depth of Cut (Decimal Inch) | 1.2 |
| Maximum Depth of Cut (mm) | 30.48 |
| Hole Diameter (mm) | 31.75 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 8 |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Right Hand |
| Maximum RPM | 12400 |
| Hub Diameter (mm) | 61.00 |
| Hub Diameter (Decimal Inch) | 2.4016 |
| Through Coolant | Yes |
| Manufacturers Catalog Number | R331.32C-129R32KMQ |
