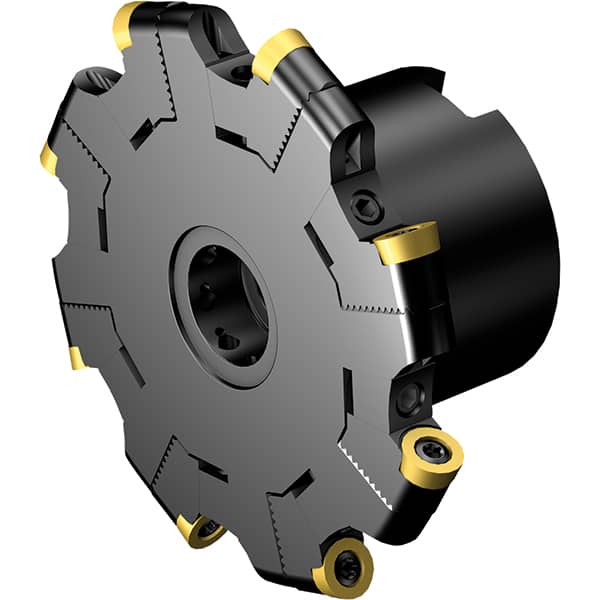

Sandvik Coromant - 1/2" Cutting Width, 1-1/2" Depth of Cut, 1-1/2" Hole Diam, 12 Tooth Indexable Slotting Cutter - Right Hand Cutting Direction
Item #: 30850770
Brand: Sandvik Coromant
Model #: 7370528
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Width (Decimal Inch) | 0.5 |
| Cutting Width (mm) | 12.7 |
| Maximum Depth of Cut (Decimal Inch) | 1.50402 |
| Maximum Depth of Cut (mm) | 38.2016 |
| Hole Diameter (mm) | 38.10 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Number of Teeth | 12 |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Maximum RPM | 12400 |
| Hub Diameter (mm) | 73.00 |
| Hub Diameter (Decimal Inch) | 2.8740 |
| Through Coolant | Yes |
| Manufacturers Catalog Number | R331.32C-154R38FMQ |
