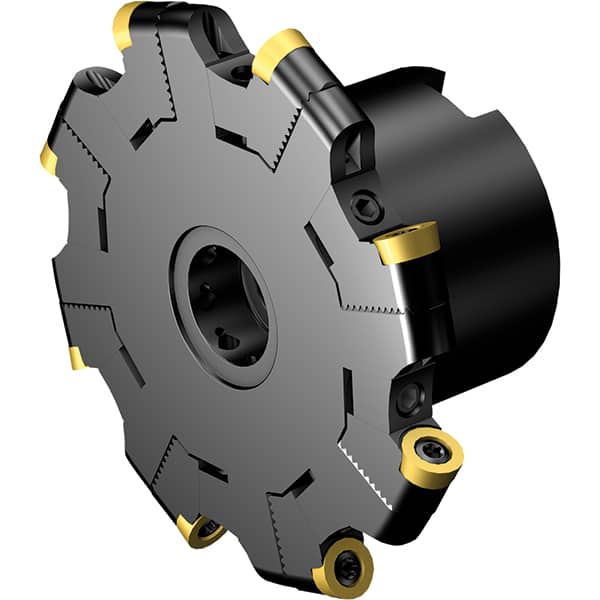

Sandvik Coromant - 3/8" Cutting Width, 0.925" Depth of Cut, 1" Hole Diam, 8 Tooth Indexable Slotting Cutter - Right Hand Cutting Direction
Item #: 30850820
Brand: Sandvik Coromant
Model #: 7370521
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Width (Decimal Inch) | 0.375 |
| Cutting Width (mm) | 9.525 |
| Maximum Depth of Cut (Decimal Inch) | 0.925 |
| Maximum Depth of Cut (mm) | 23.495 |
| Hole Diameter (mm) | 25.40 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Number of Teeth | 8 |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Right Hand |
| Maximum RPM | 15900 |
| Hub Diameter (mm) | 51.00 |
| Hub Diameter (Decimal Inch) | 2.0079 |
| Through Coolant | Yes |
| Manufacturers Catalog Number | R331.32C-103R25EMQ |
