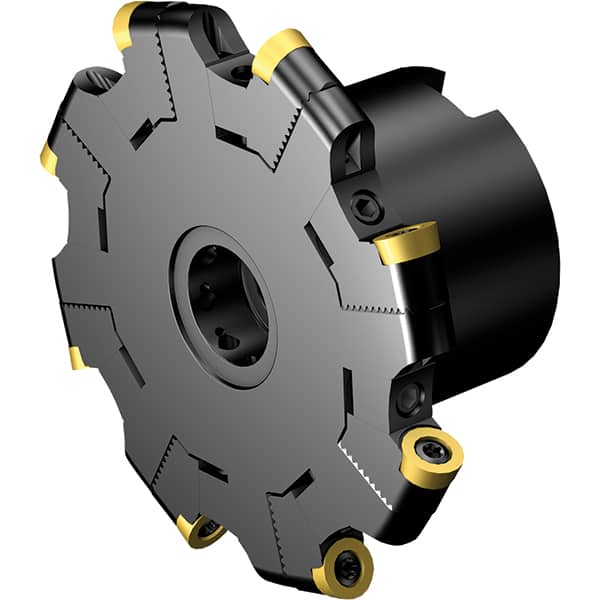

Sandvik Coromant - 0.6299" Cutting Width, 1.0433" Depth of Cut, 1-1/16" Hole Diam, 6 Tooth Indexable Slotting Cutter - Right Hand Cutting Direction
Item #: 30850846
Brand: Sandvik Coromant
Model #: 7370516
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Width (Decimal Inch) | 0.629921 |
| Cutting Width (mm) | 16 |
| Maximum Depth of Cut (Decimal Inch) | 1.04331 |
| Maximum Depth of Cut (mm) | 26.5 |
| Hole Diameter (mm) | 27.00 |
| Hole Diameter (Decimal Inch) | 1.0630 |
| Number of Teeth | 6 |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Right Hand |
| Maximum RPM | 14000 |
| Hub Diameter (mm) | 51.00 |
| Hub Diameter (Decimal Inch) | 2.0079 |
| Through Coolant | Yes |
| Manufacturers Catalog Number | R331.32C-102Q27KMQ |
