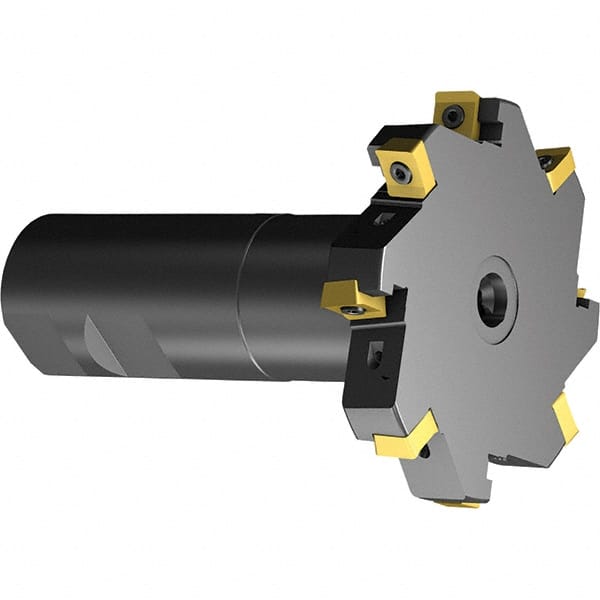

Sandvik Coromant - 3/8" Cutting Width, 0.732" Depth of Cut, 1-1/4" Hole Diam, 6 Tooth Indexable Slotting Cutter - Right Hand Cutting Direction
Item #: 30850911
Brand: Sandvik Coromant
Model #: 7295455
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Width (Decimal Inch) | 0.375 |
| Cutting Width (mm) | 9.525 |
| Maximum Depth of Cut (Decimal Inch) | 0.732008 |
| Maximum Depth of Cut (mm) | 18.5928 |
| Hole Diameter (mm) | 31.75 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 6 |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Right Hand |
| Maximum RPM | 17000 |
| Through Coolant | Yes |
| Manufacturers Catalog Number | R331.35C-063M32EMA06 |
