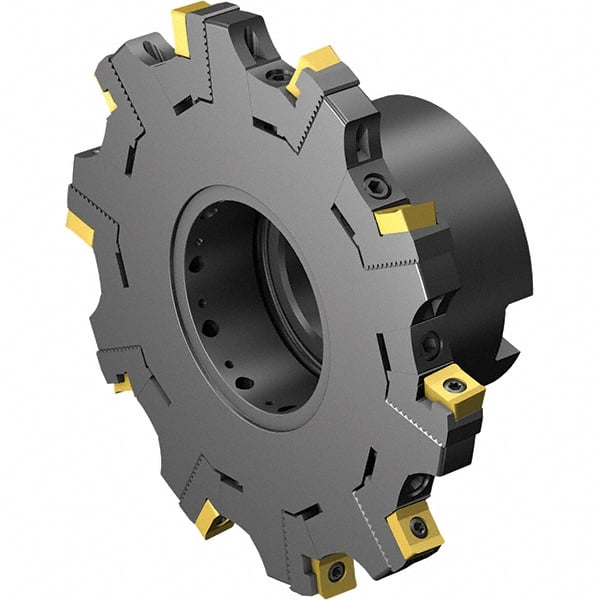

Sandvik Coromant - Arbor Connection, 0.3937" Cutting Width, 0.787" Depth of Cut, 80mm Cutter Diam, 1" Hole Diam, Indexable Slotting Cutter - 1" Shank Diam, Right Hand Cutting Direction
Item #: 30850952
Brand: Sandvik Coromant
Model #: 7295469
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor |
| Cutting Width (Decimal Inch) | 0.393701 |
| Cutting Width (mm) | 10 |
| Maximum Depth of Cut (Decimal Inch) | 0.787008 |
| Maximum Depth of Cut (mm) | 19.9898 |
| Cutter Diameter (mm) | 80.00 |
| Cutter Diameter (Decimal Inch) | 3.1496 |
| Hole Diameter (mm) | 25.40 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Decimal Inch) | 1 |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Right Hand |
| Maximum RPM | 18100 |
| Minimum Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Cutting Width (Decimal Inch) | 0.472441 |
| Maximum Cutting Width (mm) | 12 |
| Hub Diameter (mm) | 51.00 |
| Hub Diameter (Decimal Inch) | 2.0079 |
| Through Coolant | Yes |
| Manufacturers Catalog Number | R331.32C-080R25EM |
