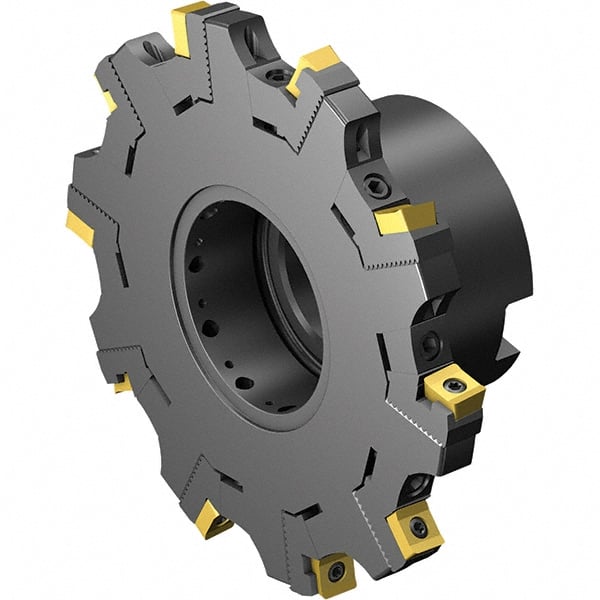

Sandvik Coromant - Arbor Connection, 0.3937" Cutting Width, 1.465" Depth of Cut, 152.4mm Cutter Diam, 1-1/2" Hole Diam, Indexable Slotting Cutter - 1-1/2" Shank Diam, Right Hand Cutting Direction
Item #: 30850960
Brand: Sandvik Coromant
Model #: 7295472
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor |
| Cutting Width (Decimal Inch) | 0.393701 |
| Cutting Width (mm) | 10 |
| Maximum Depth of Cut (Decimal Inch) | 1.465 |
| Maximum Depth of Cut (mm) | 37.211 |
| Cutter Diameter (mm) | 152.40 |
| Cutter Diameter (Decimal Inch) | 6.0000 |
| Hole Diameter (mm) | 38.10 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (mm) | 38.10 |
| Shank Diameter (Decimal Inch) | 1.5 |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Maximum RPM | 12400 |
| Minimum Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Cutting Width (Decimal Inch) | 0.472441 |
| Maximum Cutting Width (mm) | 12 |
| Hub Diameter (mm) | 73.00 |
| Hub Diameter (Decimal Inch) | 2.8740 |
| Through Coolant | Yes |
| Manufacturers Catalog Number | R331.32C-152R38EM |
