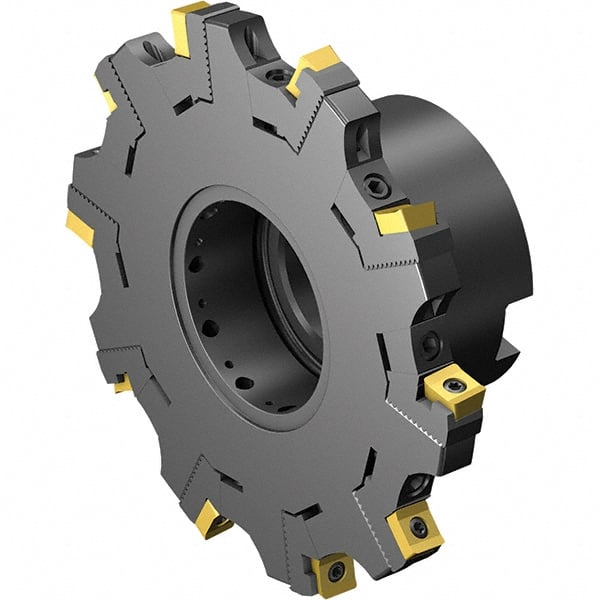

Sandvik Coromant - Arbor Connection, 0.689" Cutting Width, 1.201" Depth of Cut, 127mm Cutter Diam, 1-1/4" Hole Diam, Indexable Slotting Cutter - 1-1/4" Shank Diam, Right Hand Cutting Direction
Item #: 30850994
Brand: Sandvik Coromant
Model #: 7295480
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor |
| Cutting Width (Decimal Inch) | 0.688976 |
| Cutting Width (mm) | 17.5 |
| Maximum Depth of Cut (Decimal Inch) | 1.20098 |
| Maximum Depth of Cut (mm) | 30.5054 |
| Cutter Diameter (mm) | 127.00 |
| Cutter Diameter (Decimal Inch) | 5.0000 |
| Hole Diameter (mm) | 31.75 |
| Hole Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Decimal Inch) | 1.25 |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Right Hand |
| Maximum RPM | 12400 |
| Minimum Cutting Width (Decimal Inch) | 0.6890 |
| Maximum Cutting Width (Decimal Inch) | 0.807087 |
| Maximum Cutting Width (mm) | 20.5 |
| Hub Diameter (mm) | 61.00 |
| Hub Diameter (Decimal Inch) | 2.4016 |
| Through Coolant | Yes |
| Manufacturers Catalog Number | R331.32C-127R32LM |
