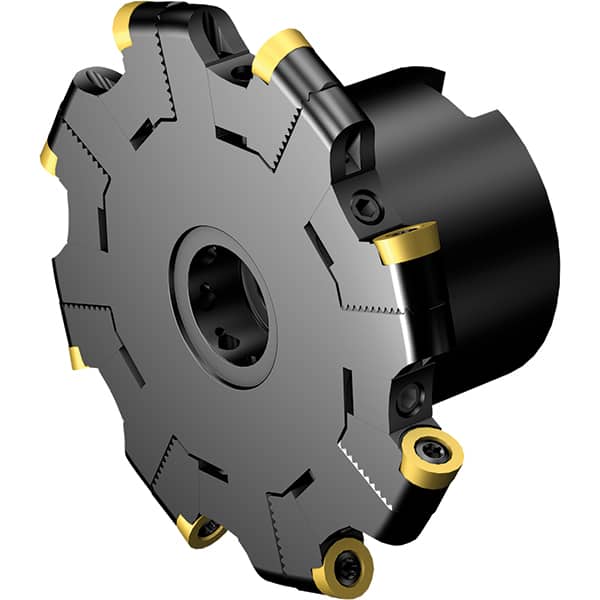

Sandvik Coromant - 0.6299" Cutting Width, 1.2008" Depth of Cut, 5" Cutter Diam, 1.2598" Hole Diam, 8 Tooth Indexable Slotting Cutter - Right Hand Cutting Direction
Item #: 30851042
Brand: Sandvik Coromant
Model #: 7370517
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Width (Decimal Inch) | 0.629921 |
| Cutting Width (mm) | 16 |
| Maximum Depth of Cut (Decimal Inch) | 1.20079 |
| Maximum Depth of Cut (mm) | 30.5 |
| Cutter Diameter (Inch) | 5 |
| Hole Diameter (mm) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Number of Teeth | 8 |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Right Hand |
| Maximum RPM | 12400 |
| Hub Diameter (mm) | 61.00 |
| Hub Diameter (Decimal Inch) | 2.4016 |
| Through Coolant | Yes |
| Manufacturers Catalog Number | R331.32C-127Q32KMQ |
