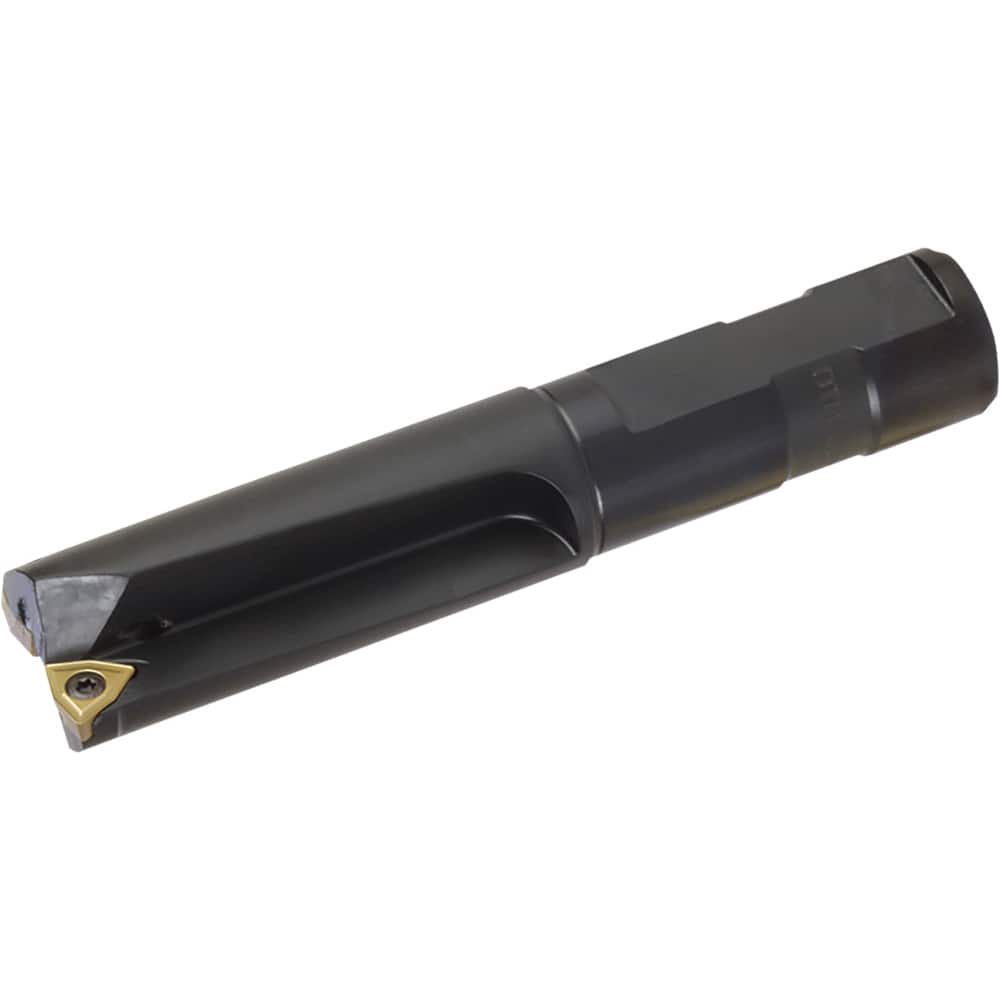

Kyocera - Indexable Insert Drills; Drill Style: CD ; Drill Diameter (Decimal Inch): 0.9900 ; Maximum Drill Depth (Inch): 2.5 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1 ; Cutting Direction: Right Hand
Item #: 30851729
Brand: Kyocera
Model #: 8600672
Product Specifications
Indexable Insert Drills; Drill Style: CD ; Drill Diameter (Decimal Inch): 0.9900 ; Maximum Drill Depth (Inch): 2.5 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 1 ; Cutting Direction: Right Hand
| Drill Style | CD |
| Drill Diameter (Decimal Inch) | 0.9900 |
| Maximum Drill Depth (Inch) | 2.5 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.5xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.9900 |
| Overall Length/Projection (Decimal Inch) | 5.7800 |
| Insert Compatibility | WCMX |
| Flute Length (Decimal Inch) | 2.5000 |
| Body Length (Decimal Inch) | 3.5000 |
| Shank Length (Decimal Inch) | 2.2800 |
| Collar Diameter (Decimal Inch) | 1.3750 |
