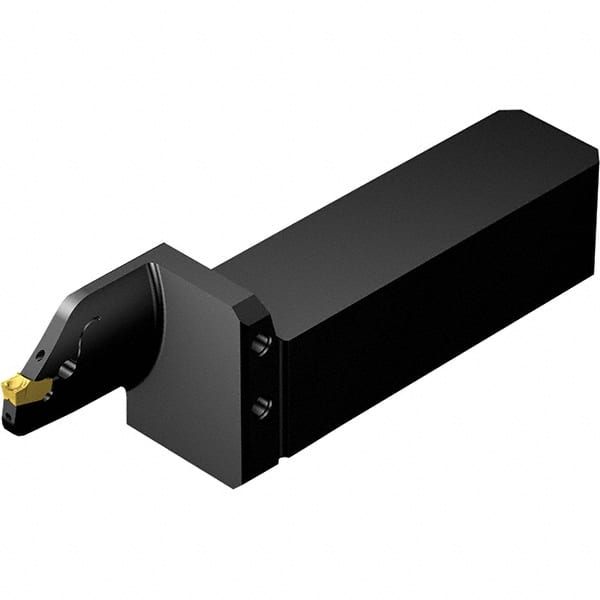

Sandvik Coromant - Left Hand, 20.32mm Max Depth of Cut, Indexable Grooving Tool Holder - 25.4mm Shank Height, 25.4mm Shank Width, Through Coolant
Item #: 30855720
Brand: Sandvik Coromant
Model #: 7192454
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.8000 |
| Maximum Depth of Cut (mm) | 20.32 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | Coolant Through |
| Coolant Hole Diameter (Inch) | 1/8 |
| Maximum Hole Depth (Decimal Inch) | 1.1780 |
| Maximum Bore Depth (Decimal Inch) | 1.1780 |
| Back of Bar to Cutting Edge (mm) | 113.92 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.4850 |
| Center to Cutting Edge (mm) | 26.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0236 |
| Head Height (Decimal Inch) | 1.0000 |
| Head Height (mm) | 25.40 |
| Head Length (mm) | 29.92 |
| Head Length (Decimal Inch) | 1.1780 |
