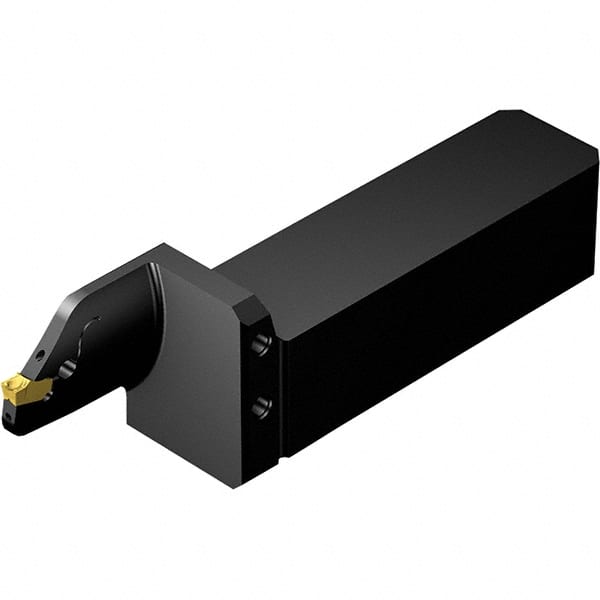

Sandvik Coromant - Left Hand, 38.1mm Max Depth of Cut, Indexable Grooving Tool Holder - 25.4mm Shank Height, 25.4mm Shank Width, Through Coolant
Item #: 30855803
Brand: Sandvik Coromant
Model #: 7192476
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (mm) | 38.10 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | Coolant Through |
| Coolant Hole Diameter (Inch) | 1/8 |
| Maximum Hole Depth (Decimal Inch) | 1.8780 |
| Maximum Bore Depth (Decimal Inch) | 1.8780 |
| Back of Bar to Cutting Edge (mm) | 132.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.1969 |
| Center to Cutting Edge (mm) | 26.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0236 |
| Head Height (Decimal Inch) | 1.0000 |
| Head Height (mm) | 25.40 |
| Head Length (mm) | 47.70 |
| Head Length (Decimal Inch) | 1.8780 |
