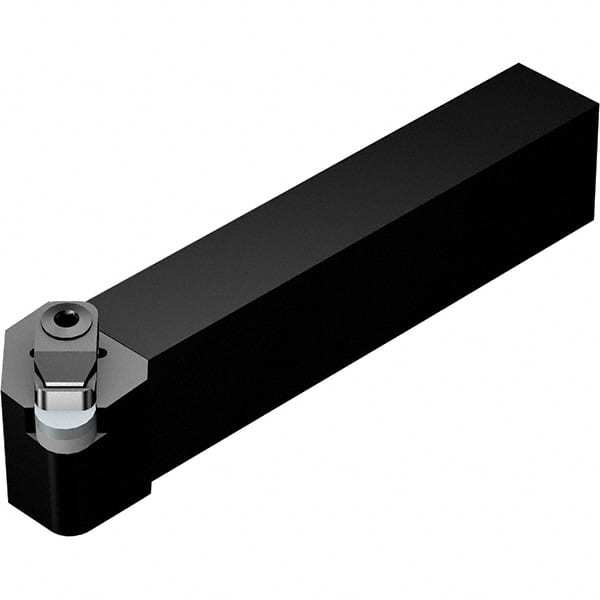

Sandvik Coromant - LH Negative Rake Indexable Turning Toolholder
Item #: 30888424
Brand: Sandvik Coromant
Model #: 7439592
Product Specifications
| Hand of Holder | Left Hand |
| Rake | Negative |
| Series | T-Max |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Insert Compatibility | RNGN 12 03 00 |
| Back of Bar to Cutting Edge (mm) | 170.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 6.6929 |
| Center to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 30.70 |
| Head Length (Decimal Inch) | 1.2087 |
| Toolholder Material | Steel |
