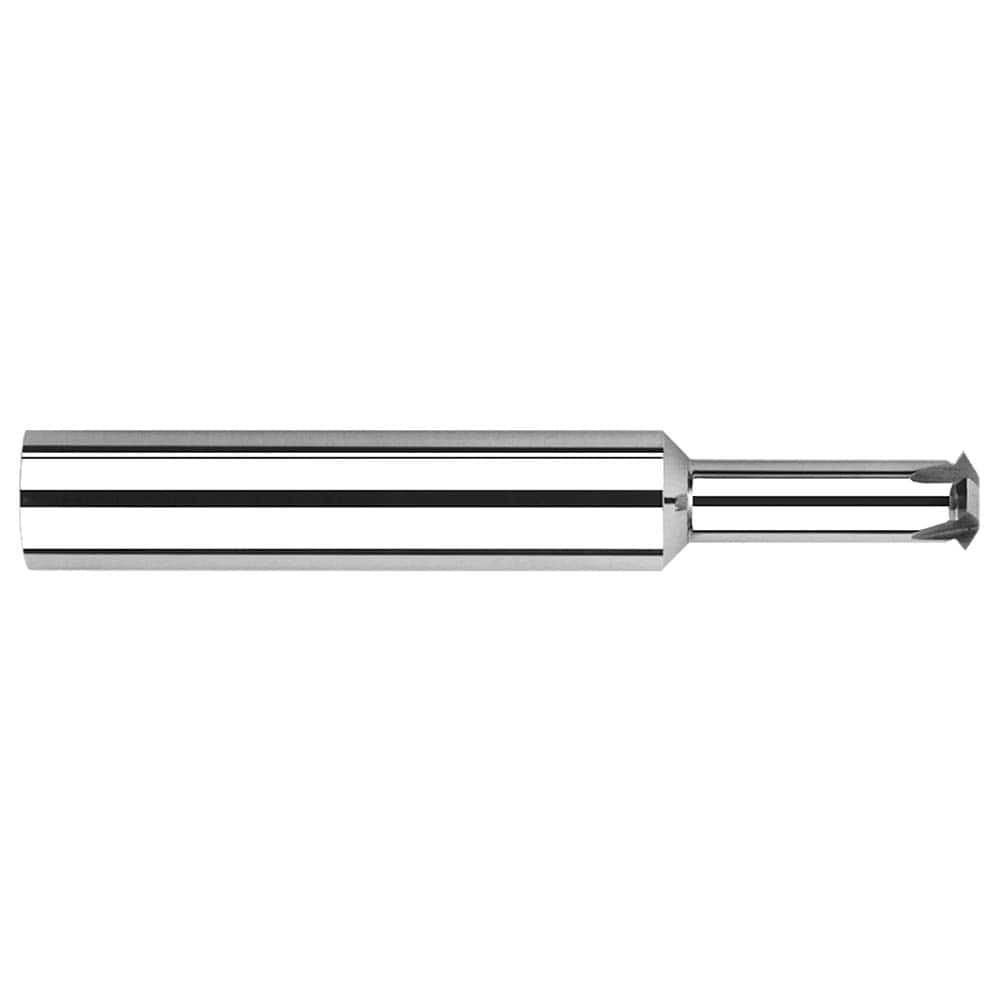

Harvey Tool - Single Profile Thread Mills; Maximum Pitch (mm): 0.35 ; Minimum Pitch (mm): 0.35 ; Thread Type: Internal/External ; Minimum Nominal Diameter (mm): 1.6 ; Cutting Diameter (Decimal Inch): 1.1600 ; Shank Diameter (mm): 3.0000
Item #: 30992838
Brand: Harvey Tool
Model #: 890316
Product Specifications
Single Profile Thread Mills; Maximum Pitch (mm): 0.35 ; Minimum Pitch (mm): 0.35 ; Thread Type: Internal/External ; Minimum Nominal Diameter (mm): 1.6 ; Cutting Diameter (Decimal Inch): 1.1600 ; Shank Diameter (mm): 3.0000
| Maximum Pitch (mm) | 0.35 |
| Minimum Pitch (mm) | 0.35 |
| Thread Type | Internal/External |
| Minimum Nominal Diameter (mm) | 1.6 |
| Cutting Diameter (Decimal Inch) | 1.1600 |
| Shank Diameter (mm) | 3.0000 |
| Material | Solid Carbide |
| Number of Flutes | 2 |
| Neck Diameter (Decimal Inch) | 0.7000 |
| Neck Length (Decimal Inch) | 0.0827 |
| Thread Size | M1.6x0.35 |
| Overall Length (Decimal Inch) | 1.49610 |
| Overall Length (mm) | 38.0000 |
| Thread Standard | UN 60 Degrees |
| Finish/Coating | Uncoated |
