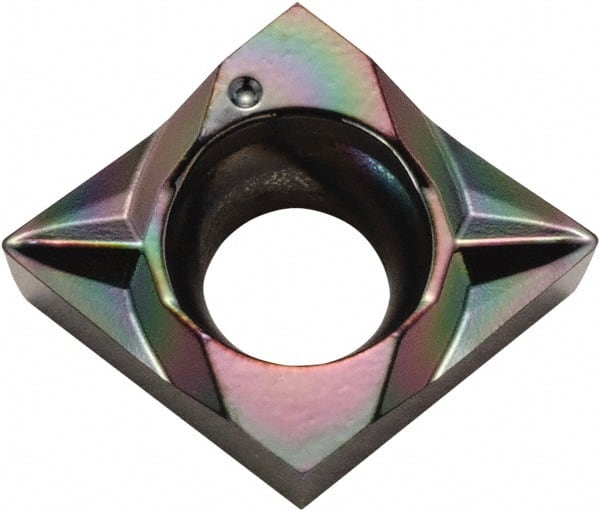

Kyocera - CCGT32502 MFP Grade PDL025 Carbide Turning Insert - Al2O3 Finish, 80° Diamond, 3/8" Inscr Circle, 5/32" Thick, 0.0039" Corner Radius
Item #: 30993422
Brand: Kyocera
Model #: 8845221
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCGT |
| Insert Size | 32502 |
| Material | Carbide |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Manufacturer's Grade | PDL025 |
| Coating | Al2O3 |
| Chip Breaker | MFP |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | CCGT09T301MFP-SK |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | CVD |
| Primary Workpiece Material | N |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Shape | Diamond |
