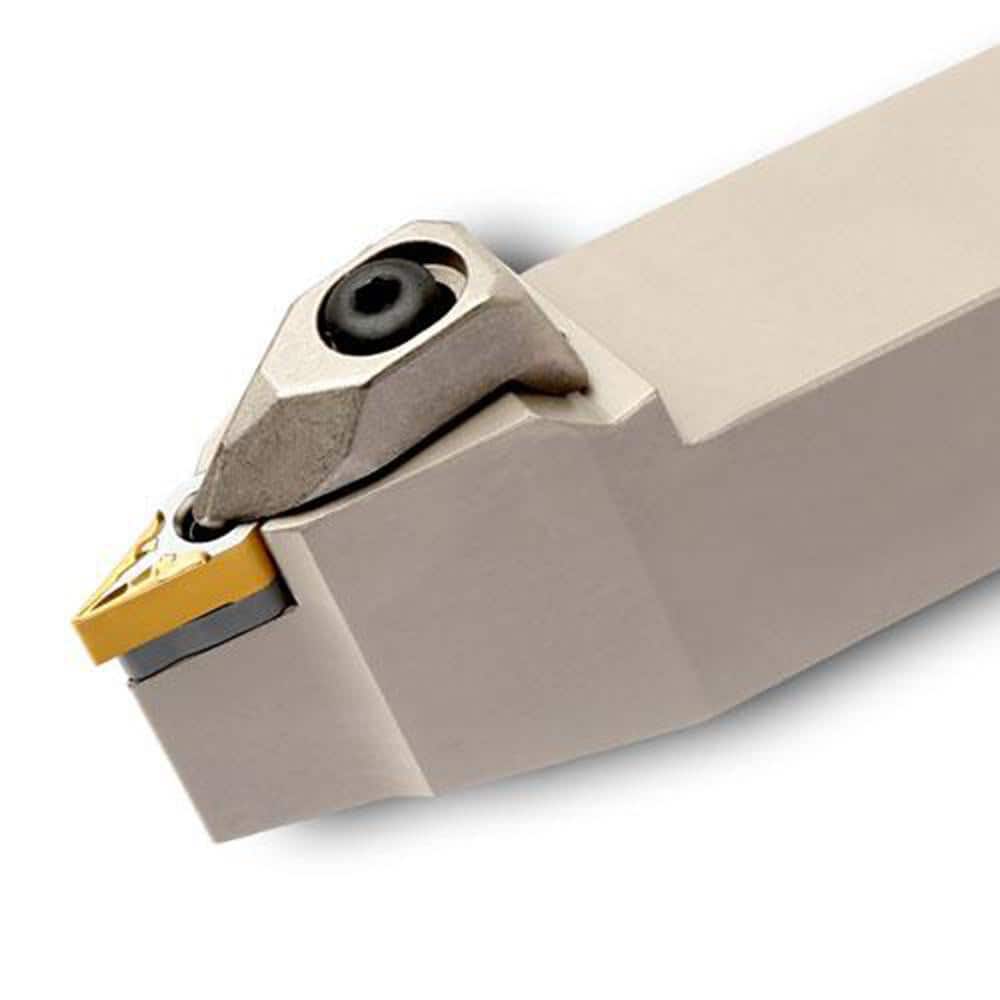

Indexable Turning Toolholders; Cutting Direction: Neutral; Compatible Insert Size Code: VN..2.53.; Toolholder Style: TVVNN; Rake: Negative; Multi-use Tool: No; Lead Angle: 73.0; Insert Holding Method: Clamp; Shank Width (Decimal Inch): 1.0000; Shank Width
Item #: 30995146
Brand: Ingersoll Cutting Tools
Model #: 6183997
Product Specifications
| Cutting Direction | Neutral |
| Compatible Insert Size Code | VN..2.53. |
| Toolholder Style | TVVNN |
| Rake | Negative |
| Multi-use Tool | No |
| Lead Angle | 73.0 |
| Insert Holding Method | Clamp |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Width (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Series | TVVNN (Gold Rhino) |
| Overall Length (mm) | 6.00 |
| Overall Length (Decimal Inch) | 6.0000 |
| Overall Length (Inch) | 6 |
| Cutting Tool Application | Turning |
| Head Length (Decimal Inch) | 1.6500 |
| Toolholder Material | Steel |
