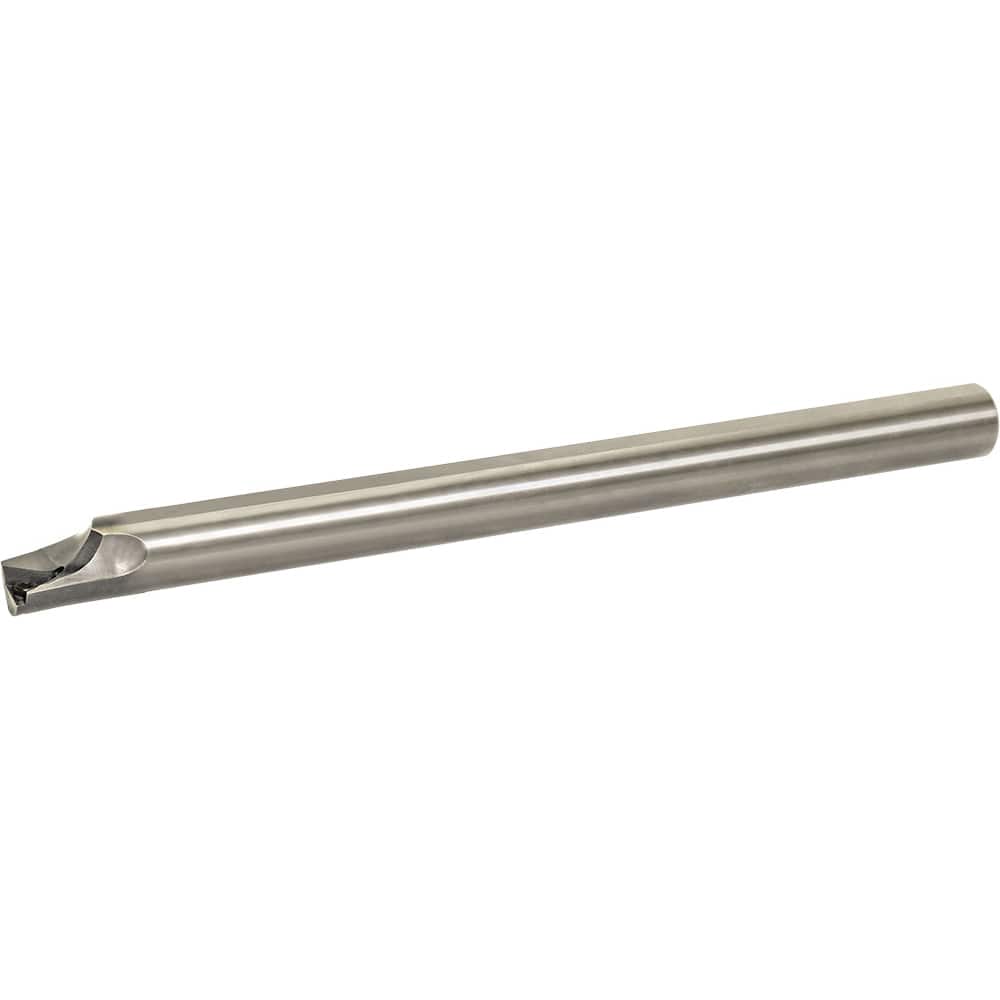

Kyocera - 14.73mm Min Bore, 24mm Max Depth, Right Hand A...STLP Indexable Boring Bar
Item #: 30998330
Brand: Kyocera
Model #: 8607632
Product Specifications
| Toolholder Style | A...STLP |
| Series | DYNB |
| Minimum Bore Diameter (mm) | 14.730 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 24.00 |
| Overall Length (Inch) | 6 |
| Shank Diameter (Inch) | 0.5 |
| Insert Compatibility | TPMX22?; TPMT22?; TPGH22?; TPET22?; TPGB22...; TPMH22? |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Boring; Internal Facing |
| Number of Inserts Used on Toolholder | 1 |
| Insert Holding Method | Screw |
| Rake | Positive |
| Lead Angle | 95 |
| Center to Cutting Edge (mm) | 7.20 |
| Insert Thickness (Inch) | 1/8 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | -7 (Radial);5 (Axial) |
| Coolant Hole Diameter (mm) | 4.00 |
| Toolholder Material | Steel |
