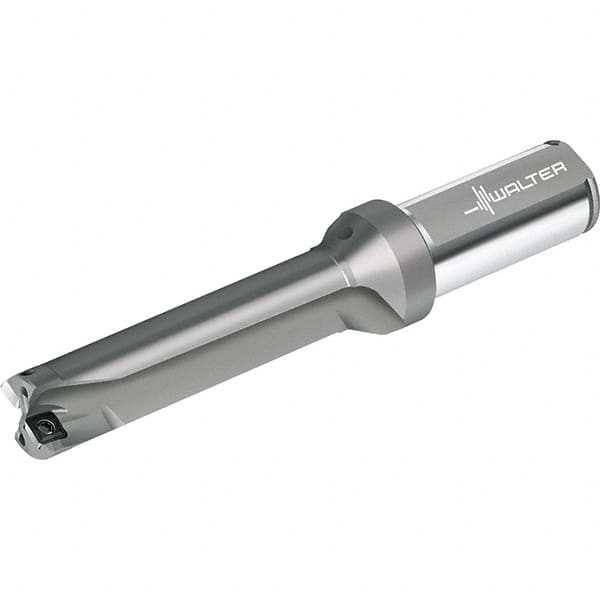

Walter - 88mm Max Drill Depth, 4xD, 22mm Diam, Indexable Insert Drill - 2 Inserts, 25mm Shank Diam, Straight Shank
Item #: 31002678
Brand: Walter
Model #: 7098468
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | D3120 |
| Drill Diameter (mm) | 22.00 |
| Maximum Drill Depth (mm) | 88.00 |
| Shank Type | Straight |
| Shank Diameter (mm) | 25.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 22.00 |
| Overall Length/Projection (mm) | 169.00 |
| Insert Compatibility | P2840S..; P2841S.. |
| Body Length (Decimal Inch) | 4.4130 |
| Series | D3120 |
