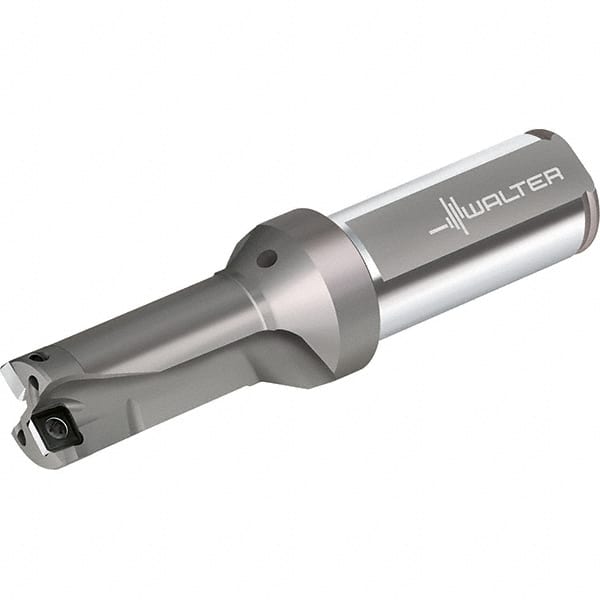

Walter - 72mm Max Drill Depth, 2xD, 36mm Diam, Indexable Insert Drill - 2 Inserts, 32mm Shank Diam, Straight Shank
Item #: 31003064
Brand: Walter
Model #: 7098428
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | D3120 |
| Drill Diameter (mm) | 36.00 |
| Maximum Drill Depth (mm) | 72.00 |
| Shank Type | Straight |
| Shank Diameter (mm) | 32.00 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 36.00 |
| Overall Length/Projection (mm) | 164.00 |
| Insert Compatibility | P2840S..; P2841S.. |
| Body Length (Decimal Inch) | 4.0510 |
| Series | D3120 |
