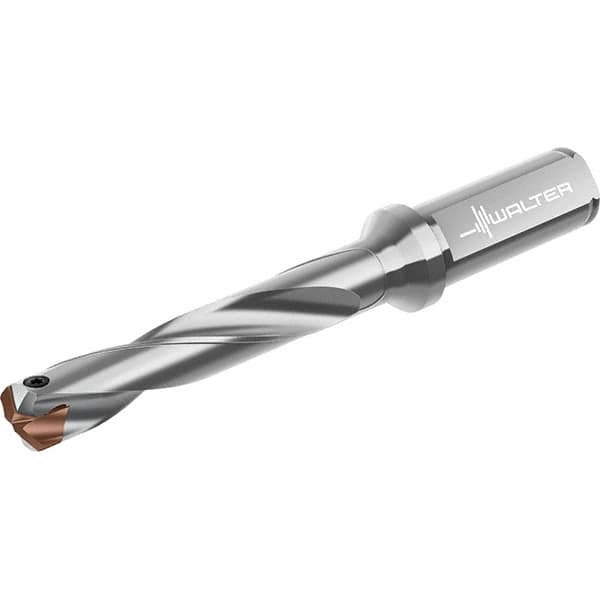

Walter - 27 to 27.99mm Diam, 5xD, 178mm Max Depth, 25mm Shank Diam, 239mm OAL, Replaceable Tip Drill - P6001-D27..R, P6003-D27..R, P6004-D27..R, P6005-D27..R Insert, D4140 Toolholder, Series D4140
Item #: 31003304
Brand: Walter
Model #: 7169833
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | D4140 |
| Minimum Drill Diameter (mm) | 27.00 |
| Maximum Drill Diameter (mm) | 27.99 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 178.00 |
| Shank Diameter (mm) | 25.00 |
| Insert Style | P6001-D27..R; P6003-D27..R; P6004-D27..R; P6005-D27..R |
| Toolholder Style | D4140 |
| Through Coolant | Through Coolant |
| Shank Type | Straight |
| Body Length (mm) | 178.09 |
| Overall Length (mm) | 239.00 |
